MIIC-210G - iPort/LAN 2 I2C Bus Adapter |
|
|
|
|
|
| |
** DISCONTINUED PRODUCT **
Ethernet to I2C Host Adapter with ASCII Fast Mode Interface
The iPort/LAN 2 works with Windows based Host Computers. Supports both Standard (100Kbps) and Fast (400Kbps) I2C Bus speeds, plus the I2C Interrupt signal. Controlled with a simple ASCII command interface and a Virtual Communications Port that simplifies Ethernet connectivity, the iPort/LAN 2 includes a high performance processor for improved throughput with low overhead. Includes adapter unit, software, cables, and Global Power Supply.
|
| |
|
|
 |
PRODUCT HIGHLIGHTS |
|
- Access Direct, Local (LAN), or Remote (INTERNET) connect I2C devices to your Desktop PC.
- Supports Operating Systems:
- Windows XP, Vista, 7, 8, 8.1, and 10.
- High Performance Processor Increases Throughput
- Circuit Sense, Low Voltage Sensing Circuit
- I2C Bus Mini Interface
- Ethernet Network Interface (IEEE 802.3, 10/100Base-T, 10/100 Mbps Auto-Sensing, RJ-45).
- Built-in ESD, Over-voltage, and Reverse-voltage Protection.
- Switch Controlled Properties:
- I2C Bus Mode Switch, +5V Power Source, or Voltage Sense (0.5v to 5v)
- I2C Bus Pull-Up Switch, 1.8K ohm, Enable or Disable
- Software Controlled Properties:
- I2C Bus Master Clock Rates:
- 23KHz
- 86KHz
- 100KHz (Standard Mode)
- 400KHz (Fast Mode)
- I2C Bus General Call Enable
- I2C Bus Time-Out (0-32K ms)
- I2C Bus Interrupt Signal Control (Assert, Release, Monitor)
- Host Commuication Flow Control (XON/XOFF or RTS/CTS)
- User Interface Echo/Prompt Enable
- User Data Format (HEX or ASCII/HEX)
- Serial Port Baud Rates (19,200, 57,600, and 115,200)
- Supported I2C Bus Activities:
- Master and Slave Functions
- Transmit, Receive, and TxRx Data Functions
- Multi-Master Arbitration Loss Detection
- Clock-stretch Detection
- Bus Time-Out Detection
- Interrupt Signal Generation and Detection
- 7-bit Slave Address Generation and Detection
- Up to 32K data bytes in a single message
- SMBus Packet Error Detection
- eXtended Commands for 2-Wire, "I2C-Like" Low-level SCL/SDA Signal Control
- Software Support:
- Virtual ComPort (VCP) Driver
- Application Software:
- Master or Slave Tx and Rx with iPort Utility Pack Software
- Program I2C Bus EEPROMs with iBurner EEPROM Programming Software
- Software Development Tools:
- Develop Custom VB/C#/C++/LabVIEW Apps with our Microsoft .NET Class Library
- Develop Custom LabVIEW Apps with our LabVIEW VI Library
- Develop Custom Apps with our Direct Access ASCII Text Command Interface
- Compatible with existing MCC ASCII-text based I2C Bus adapter applications.
- US-FCC and EUR-CE EMC Certification
- RoHS/Lead-Free Compliant
|
|
TYPICAL APPLICATIONS |
|
- Product Development: Software/Hardware Testing and Troubleshooting.
-
Manufacturing: Testing and Debugging, EEPROM Programming, Quality Control.
-
Field Service: Field diagnosis, Repair service and Verification, Product Updates.
|
|

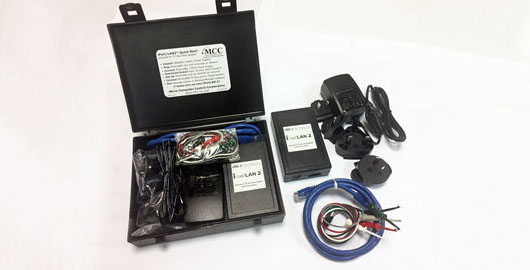

INCLUDED PARTS LIST |
|
|
|
- iPort/LAN 2 I2C Bus Host Adapter
-
I2C Bus Mini Clip Lead Cable (5-wire, 1ft.)
-
Ethernet Interface Cable (3 Ft., Standard)
-
Global Power Supply (100-240V, 50-60Hz)
-
Quick Start Quide
-
iPort I2C Utility Pack for Windows (Download)
-
iPort/LAN 2 User's Guide (Download)
|
| |
|  |
