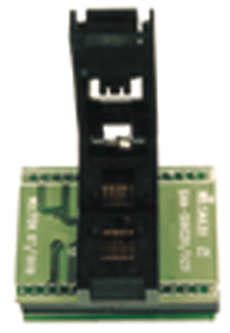

Xeltek Programming Adaptor: SA635 20-pin SOP/SOIC to 20-pin DIL |
|
|
|
|
|
| |
This Programming Adaptor is designed to convert any 20-pin SOP / SOIC package device into the corresponding 20-pin Dual-in-Line (DIL) package suitable for inserting into the ZIF socket of a Parallel Programmer.
Please note:
This adaptor features an 20-pin SOIC / SOP adaptor on the top and 20 DIL pins on the bottom.
Type: SOP/SOIC (open type)
Top PCB: SOIC20/D20
Top Adaptor pin-out: SOP/SOIC20
Bottom PCB: B005 W*L(mm)=4.4*6.5 Pitch(mm)=0,65
Bottom Adaptor pin-out: DIL-20
Typical Device Support: AT89C2051, AT89C4051, AT90S1200, AT90S2313, ATtiny2313, LG97C2051
Programmer supported: SP280U / 580U / 3000U / 8000U / 9000U |
| |
|  |
| Product Information |
| Xeltek Programming Adaptor: SA635 20-pin SOP/SOIC to 20-pin DIL |
| Xeltek |
|
XEL-SA635 |
| Discontinued Product |
|
|
