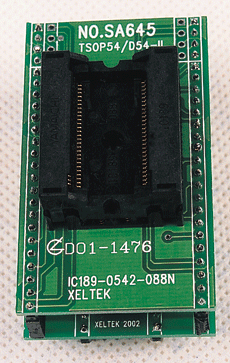

Xeltek Programming XEL-SA645-B005 Adaptor: 54-pin TSOP to 48-pin DIL |
|
|
|
|
|
| |
The Xeltek SA645-B005 is a Programming Adaptor which converts a device in a 54-pin TSOP package to a 48-pin 0.8" pitch DIL pinout suitable for using with a Device Programmer.
Type: TSOP
Top PCB: TSOP54/48D
Bottom PCB: B035 W*L(mm)=10,16 Pitch(mm)=0,8
Typical Device Support: See Xeltek Device Search
Programmers supported: SP 280U / 580U/ 3000U / 9000U |
| |
|  |
| Product Information |
| Xeltek Programming XEL-SA645-B005 Adaptor: 54-pin TSOP to 48-pin DIL |
| Xeltek |
|
XEL-SA645-B005 |
| Discontinued Product |
|
|
