XC-475 - 1 Port RS232 and 1 Printer Port LPT Native ExpressCard Serial Adapter |
|
|
|
|
|
| |
ExpressCard providing one RS232 serial port and one Printer port where absolute compatibility with classic desktop serial COM ports and parallel LPT printer ports is a necessity. ExpressCard is 34mm wide and fits 34mm or 54mm slots.
Guaranteed low latency, memory mapped, no compromise high performance interface. Data transfer rates up to 921,600 baud rates and the 128 byte deep transmit and 128 byte receive FIFOS, coupled with 1Mbit/s line drivers deliver uncompromising performance on your laptop. Drivers for Windows 32 bit and 64 bit Operating Systems including Windows XP, Server 2003, Vista, Server 2008, Windows 7 and Windows 8.
|
| |
|
|
 |
XC-475 Features |
|
- 1 Port RS-232 and 1 LPT Printer Port
-
ExpressCard (PCIe) Technology: Absolute compatibility with classic desktop serial COM ports
-
Guaranteed low latency, memory mapped, no compromise high performance interface
-
Data rate from 110 to 921,600 baud
-
Fits in any 34mm or 54mm ExpressCard slot
-
Lifetime Warranty and Support
|
|

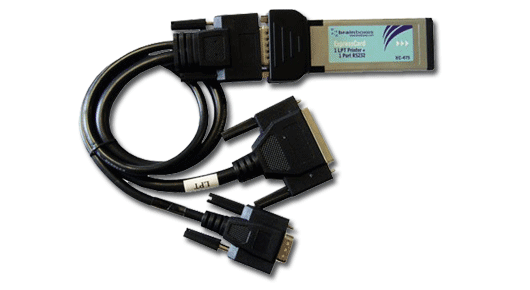

XC-475 Product picture |
|
|
|
|
XC-475 Port Pinouts |
|
|

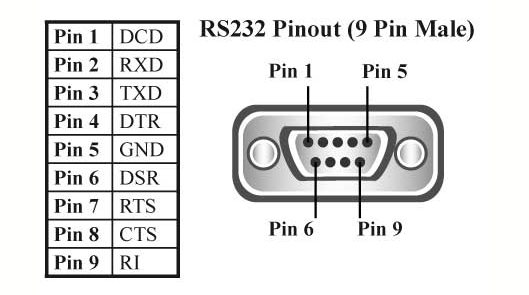

RS232 Port Pinout

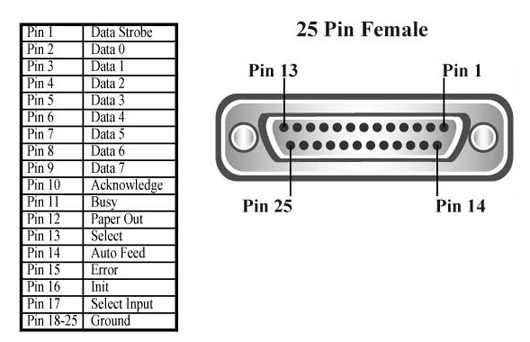

LPT Printer Port Pinout
|
|
Operating System Compatibility |
|
- Microsoft Windows 8 32 bit & 64 bit Editions
-
Microsoft Windows 7 32 bit & 64 bit Editions
-
Windows Vista 32 bit & 64 bit Editions
-
Windows XP 32 bit & 64 bit Editions
|
|
Interface |
|
|
ExpressCard PCIe Implementation. Unlike the VX range which uses USB technology over ExpressCard, this uses PCI Express technology over ExpressCard. All Brainboxes XC cards are PCI Express Base Specification 1.1 Compliant.
|
| |
|  |
|
View Downloads for this Product
