Brainboxes UC-257 - 2 Port RS232 PCI Serial Port Card |
|
|
|
|
|
| |
Universal PCI providing two RS232 serial ports, with an option of a printer port connected via flylead. Data transfer rates up to 115,200 baud and the 128 byte deep transmit and 128 byte receive FIFOS, coupled with 1Mbit/s line drivers deliver uncompromising performance on your PC.Includes drivers for all Windows 32 bit and 64 bit Operating Systems, including Windows 8. Alternate option available with two RS232 serial ports and additional LPT printer port on fly lead (part number UC-257F).
|
| |
|
|
 |
UC-257 Features |
|
- Two RS232 serial ports
-
Option to add a printer port via fly lead
-
Data transfer rates up to 115,200 baud
-
Universal PCI - tried and trusted
-
Drivers for all popular operating systems
-
Lifetime Warranty and Support
|
|

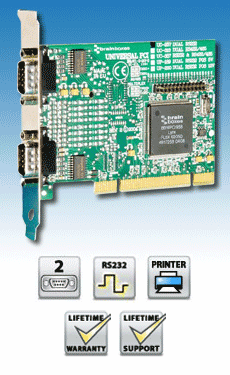

UC-257 Product Picture |
|
|
|
|

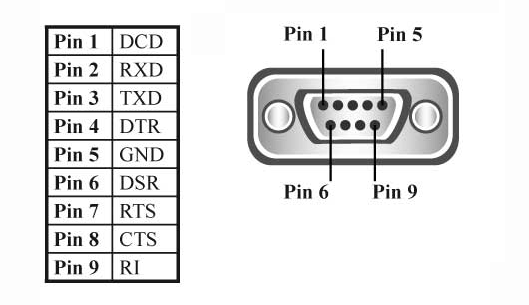

UC-257 RS232 (9-pin male) Pinout Picture |
|
|
|
|
Operating System Compatibility |
|
- Operating Systems
-
Microsoft Windows 8 32 bit & 64 bit Editions
-
Windows Server 2012
-
Microsoft Windows 7 32 bit & 64 bit Editions
-
Windows Server 2008 32 bit & 64 bit Editions
-
Windows Vista 32 bit & 64 bit Editions
-
Windows Server 2003 32 bit & 64 bit Editions
-
Windows XP 32 bit & 64 bit Editions
-
Microsoft Windows 2000
-
DOS
|
|
Interface |
|
|
PCI 3.0 Peripheral Component Interface
|
| |
|  |
|
