Brainboxes PX-324 - 1 Port RS422/485 PCI Express Serial Card |
|
|
|
|
|
| |
PCI Express Card providing one RS422/485 serial port. Data transfer rates up to 921,600 baud rates and the 128 byte deep transmit and 128 byte receive FIFOS, coupled with 1Mbit/s line drivers deliver uncompromising performance on your PC. Drivers for Windows 32 bit and 64 bit Operating Systems including Windows 2000, XP, Server 2003, Vista, Server 2008, Windows 7 and Windows 8.
|
| |
|
|
 |
PX-324 Features |
|
- 1 port RS422/485
-
PCI Express x1, x4, x8 x16 lane slots socket size
-
128 Byte Tx and 128 Byte Rx FIFOs
-
Up to 921,600 Baud
-
DB9 connector (9 Pin Male)
-
Drivers for all popular operating systems
-
Sample Programs, Test & Terminal software
-
Lifetime Support
-
Lifetime Warranty (registration required)
|
|

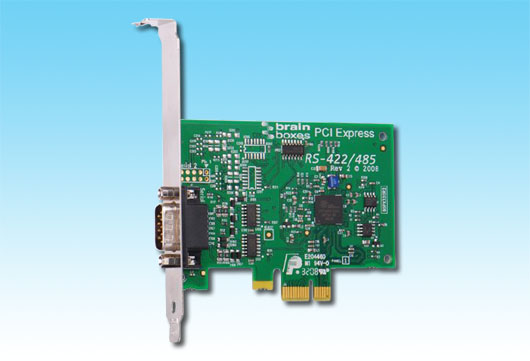

PX-324 Product Picture |
|
|
|
|

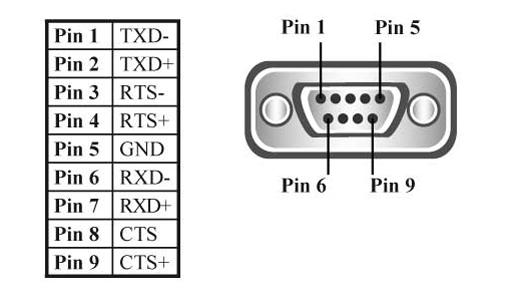

PX-324 RS422/485 Pinout (9-pin) |
|
|
|
|
PX-324 Operating System Compatibility |
|
- Microsoft Windows 8 32 bit & 64 bit Editions
-
Microsoft Windows 7 32 bit & 64 bit Editions
-
Windows Server 2008 32 bit & 64 bit Editions
-
Windows Vista 32 bit & 64 bit Editions
-
Windows Server 2003 32 bit & 64 bit Editions
-
Windows XP 32 bit & 64 bit Editions
-
Microsoft Windows 2000
|
|
PX-324 Interface |
|
|
PCI Express x1, x4, x8 & x16 lane slots
PCI Express (Peripheral Component Interconnect Express), officially abbreviated as PCI-E or PCIe, is a computer expansion card standard introduced by Intel in 2004. All Brainboxes PX cards are PCI Express Base Specification 1.1 Compliant.
|
| |
|  |
|
