Brainboxes PX-846 - PCI Express 1 Port RS232, 1 Amp POS Card |
|
|
|
|
|
| |
PCI Express Card providing one powered RS232 serial ports. Data transfer rates up to 921,600 baud rates and the 128 byte deep transmit and 128 byte receive FIFOS, coupled with 1Mbit/s line drivers deliver uncompromising performance on your PC. Up to 1 Amp selectable power provided through pins 1 and 9 to attached peripherals. The extra power necessary is supplied to the PCI express card directly from the PC power supply unit through a Serial ATA (SATA) power connector: a neat, clean and green solution. Drivers for Windows 32 bit and 64 bit Operating Systems including Windows 2000, XP, Server 2003, Vista, Server 2008, Windows 7 and Windows 8.
|
| |
|
|
 |
PX-846 Features |
|
- 1 port RS232
-
PCI Express x1, x4, x8 x16 lane slots socket size
-
128 Byte Tx and 128 Byte Rx FIFOs
-
Up to 921,600 Baud
-
DB9 connector (9 Pin Male)
-
Drivers for all popular operating systems
-
Sample Programs, Test & Terminal software
-
Lifetime Support
-
Lifetime Warranty (registration required)
|
|

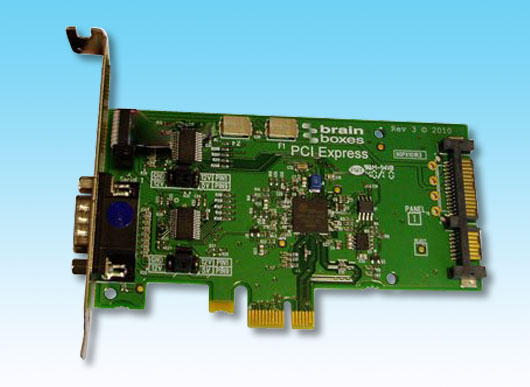

PX-846 Product Picture |
|
|
|
|
Operating System Compatibility |
|
- Microsoft Windows 8 32 bit & 64 bit Editions
-
Microsoft Windows 7 32 bit & 64 bit Editions
-
Windows Server 2008 32 bit & 64 bit Editions
-
Windows Vista 32 bit & 64 bit Editions
-
Windows Server 2003 32 bit & 64 bit Editions
-
Windows XP 32 bit & 64 bit Editions
-
Microsoft Windows 2000
|
|
Interface |
|
|
PCI Express x1, x4, x8 & x16 lane slots
PCI Express (Peripheral Component Interconnect Express), officially abbreviated as PCI-E or PCIe, is a computer expansion card standard introduced by Intel in 2004. All Brainboxes PX cards are PCI Express Base Specification 1.1 Compliant.
|
| |
|  |
|
