Brainboxes SW-505 - Industrial Compact Ethernet 5 Port Switch DIN Rail Mountable |
|
|
|
|
|
| |
Industrial Compact Ethernet 5 Port unmanaged switch. Galvanically Isolated Ethernet Ports capable of 10/100 Mbps. Industrial temperature range of -40°C to +80°C (-40°F to 176°F) and dual input redundant power supply with wide voltage range means it can be powered from USB or on the 24V factory floor. Power terminal is removable with numbered pins for easy wiring. Power consumption is optimised based on the status of the link device. No software required. Ideal for factory floor, in vehicle and marine applications. Includes Broadcast Storm Protection and support for Rapid Spanning Tree Protocol.
|
| |
|
|
 |
SW-505 Product Features |
|
- 4 Port Compact Ethernet Switch
-
Integrated DIN Rail Mount with grounding
-
Redundant dual power inputs: +5V to +30V DC
-
Industrial temperature range -40 °C to +80 °C / -40 °F to +176 °F
-
Small Footprint Case, only 22.5mm wide, 94mm deep
-
Broadcast Storm Protection
|
|

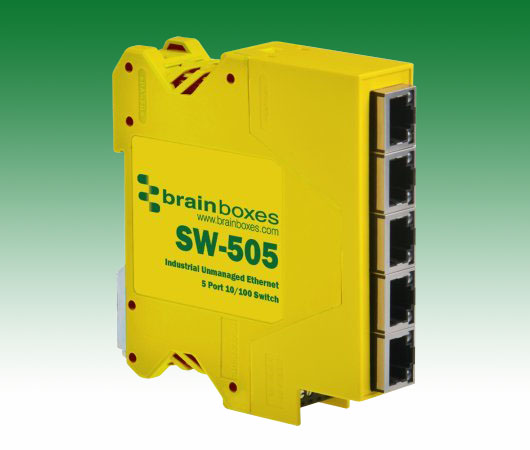

SW-505 Product Picture |
|
|
|
|
Product Interface |
|
|
Ethernet
Ethernet Interface takes advantage of a companies pre-existing infrastructure, allowing you to connect to your Brainboxes device over the local network, or from across the world.
|
| |
|  |
|
