Brainboxes UC-324 - 1 Port RS422/485 PCI Serial Card |
|
|
|
|
|
| |
Universal PCI providing one RS422/485 serial port. Data transfer rates up to 921,600 baud rates and the 128 byte deep transmit and 128 byte receive FIFOS, coupled with 1Mbit/s line drivers deliver uncompromising performance on your PC.Includes drivers for all Windows 32 bit and 64 bit Operating Systems, including Windows 8 and 8.
|
| |
|
|
 |
Product Features |
|
- 1 port RS422/485
-
PCI 3.0
-
128 Byte Tx and 128 Byte Rx FIFOs
-
Up to 921,600 Baud
-
DB9 connector (9 Pin Male)
-
Drivers for all popular operating systems
-
Sample Programs, Test & Terminal software
-
Lifetime Support
-
Lifetime Warranty (registration required)
|
|

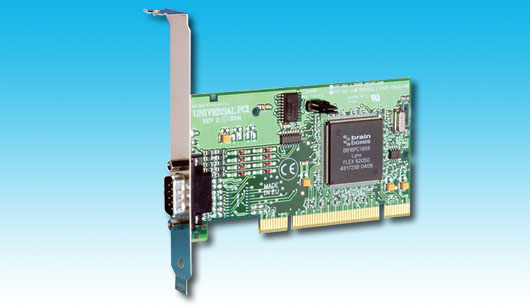

Product Picture |
|
|
|
|

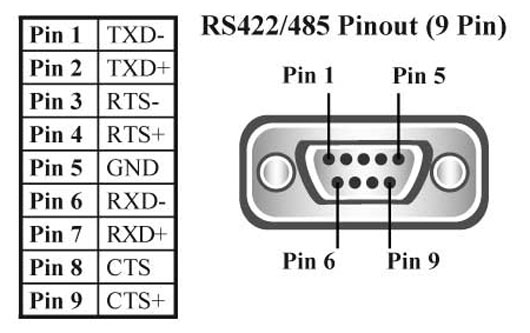

Product Pin Out Picture |
|
|
|
|
Operating System Compatibility |
|
- Microsoft Windows 10
-
Microsoft Windows 8 32 bit & 64 bit Editions
-
Windows Server 2012
-
Microsoft Windows 7 32 bit & 64 bit Editions
-
Windows Server 2008 32 bit & 64 bit Editions
-
Windows Vista 32 bit & 64 bit Editions
-
Windows XP 32 bit & 64 bit Editions
-
DOS
|
|
Interface |
|
|
PCI 3.0 - Peripheral Component Interface
|
| |
|  |
|
