Brainboxes PX-101 - 2 Port RS232 Low Profile PCI Express Serial Card





PCI Express Card providing two RS232 serial ports. Low profile board gives first serial port on the bracket, with a second serial port on a fly lead. Data transfer rates up to 921,600 baud rates and the 128 byte deep transmit and 128 byte receive FIFOS, delivers uncompromising performance on your PC. Drivers for Windows 32 bit and 64 bit Operating Systems including Windows 2000, XP, Server 2003, Vista, Server 2008, Windows 7 and Windows 8.




Features



PX-101 Main Features
  • 2 port RS232
  • PCI Express x1, x4, x8 x16 lane slots socket size
  • 128 Byte Tx and 128 Byte Rx FIFOs
  • Up to 921,600 Baud
  • DB9 connector (9 Pin Male)
  • Drivers for all popular operating systems
  • Sample Programs, Test & Terminal software
  • Lifetime Support
  • Lifetime Warranty (registration required)

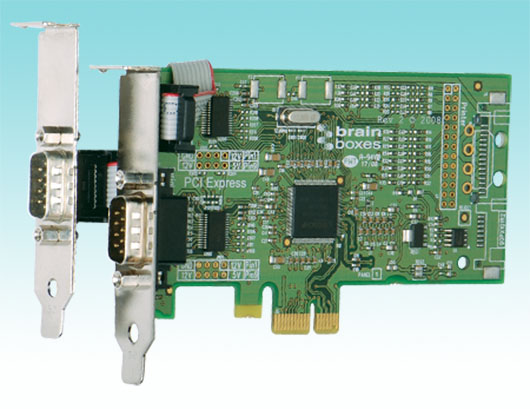

PX-101 Main Picture

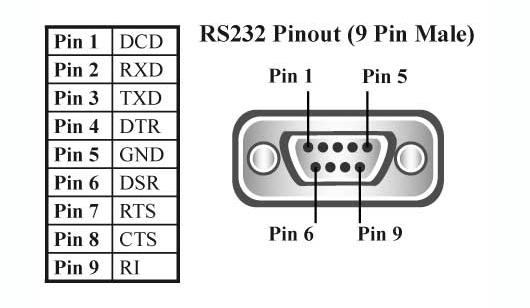

PX-101 Pinout




Ordering Information...




Brainboxes PX-101 - 2 Port RS232 Low Profile PCI Express Serial Card

Manufacturer:  Brainboxes
Order Code:  BRAIN-PX-101
Quantity Price (GBP) [Excl. VAT]
1 and above 150.00

Availability:
0 in stock
7 days delivery
Product Information
Product:  Brainboxes PX-101 - 2 Port RS232 Low Profile PCI Express Serial Card
Manufacturer:  Brainboxes
Order Code:  BRAIN-PX-101
Availability:  0 in stock
7 days delivery
Price:   150.00 (GBP)
 [Excl. VAT]
