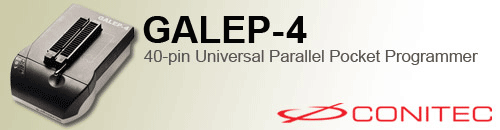

Conitec - Galep-4 - 40-pin Universal Parallel Pocket Programmer





The GALEP-4 is a pocket-sized professional field programmer. It supports EPROMs, EEPROMs, FLASH EPROMs, serial EEPROMs, Microcontrollers, GALs and PALCEs - handling up to DIP40 devices without requiring additional adapters or circuitry.

By using a highly integrated FPGA, GALEP's internal logic is freely programmable and automatically optimized for the selected component. This way all components can be both written and read at optimal speed.




Features



Powerful Software
Free Software Updates
Device Support
Security Features
Socket Adaptors
State of the art design
Support for low voltage devices
Technical Specifications
Windows OS versions supported
Rechargeable internal power supply
System Requirements
Guarantee
Certification

Powerful Software
  • The Galep-4 OS features a comprehensive set of basic functions such as read, program, compare and delete, along with easy-to-use custom configuration options for any special functions required by the selected component.
  • The editor allows a multitude of functions for editing component contents which can be saved and loaded in binary, intel-hex, motorola-s or jedec file format.
  • Using the COM objects feature in the GALEP-4 OS, the user can also access the programmer from within their chosen software application (e.g. Visual Basic)

Free Software Updates
  • The Galep-4 software includes the ability to constantly incorporate support for additional devices, via free software updates offered on our website. We develop new components on a monthly basis, and any Galep-4 owner can implement these by downloading software updates from the internet. This feature allows the GALEP-4 to remain at the cutting edge of industry standards for years to come. This easy upgradeability effectively resists obsolescence. Galep owners have life-time free access to the updates

Device Support
  • 4937 devices supported by package
  • 10,421 devices supported by name
  • For full device support list, see seperate tab

Security Features
  • Prior to each function, the GALEP-4 checks the electric selected device's electric consumption, as well as the correct positioning of the selected component. This reduces the risk of accidentally harming the component or the programmer to a minimum

Socket Adaptors
  • The GALEP-4 features a universal pin driver design. In contrast to such high end programmers as HILO's EMP-11, which only features a few universal pin drivers, the Galep-4 carries a separate universal pin-driver for each of the 40 socket pins. Therefore GALEP-4's pin driver design corresponds to that usually found in far more expensive programmers
  • Low-Voltage GALEP-4 pin drivers feature true level-shifters and comparators, guaranteeing clean signals right down to 1.3 volts. The Galep-4 comparators allow measurement of the voltage on any of the 40 pins within a range of 0 to 25 volts with a precision of 100 mV. This can be used to precisely determine high and low levels at the component's output pins. GALEP-4 consequently requires far fewer socket adapters than other high end programmers such as the ALL-11C/P
  • A comprehensive range of socket converters for different packaging formats are also carried

State of the art design
  • By using a highly integrated FPGA, GALEP's internal logic is made freely programmable and is automatically optimized for the selected component. This way all components can be both written and read at optimal speed
  • Dual power: AC adapter or 6 rechargable NiMH batteries (AAA) Socket converters available for most component packages

Support for low voltage devices
  • The Galep-4 supports low-voltage devices down to 1.3 volts

Technical Specifications
  • Pocket-sized, ultra-portable format: only ca. 80 x 115 x 33 mm Programs 8-bit and 16-bit EEPROM's up to 8 MBit, normal and serial EEPROM's, Flash-EPROM's
  • Programs GALs / PALCEs
  • Also programs numerous micro-controllers, e.g. Atmel AVR, PICmicro, 8x51
  • Easy PC printer port connection
  • Automatic Split/shuffle function for 8-, 16- and 32-bit target systems
  • Supports Hex, Jedec and Binary file formats
  • Integrated hex and fusemap editor
  • Software for Win95, Win98, ME, 2000, NT, XP, Vista
  • Flexible pin driver technology allows new devices to be implemented via software monthly - providing permanently upgradeable hardware.
  • Unlimited free software updates via internet

Windows OS versions supported
  • Win95/ 98 /ME /NT4 /2000 /XP

Rechargeable internal power supply
  • Along with conventional external power, the GALEP-4 is configured for use in the field, with six NiMH rechargable batteries, allowing up to 8 hours of continuous operation between charges. (AAA/600mAh) (batteries not included)

System Requirements
  • Pentium Processor
  • 32-bit Windows OS (Win95/ 98 /ME /NT4 /2000 /XP)

Guarantee
  • 24 months

Certification
  • CE
  • UL




Ordering Information...




Conitec - Galep-4 - 40-pin Universal Parallel Pocket Programmer
The GALEP-4 is a pocket-sized professional field programmer which supports EPROMs, EEPROMs, FLASH EPROMs, serial EEPROMs, Microcontrollers, GALs and PALCE's.
Manufacturer:  Conitec
Order Code:  CON-GALEP4
Quantity Price (GBP) [Excl. VAT]
1 and above
255.00

Availability:
0 in stock
10 days delivery
Product Information
Product:  Conitec - Galep-4 - 40-pin Universal Parallel Pocket Programmer
Manufacturer:  Conitec
Order Code:  CON-GALEP4
Availability:  0 in stock
10 days delivery
Price:   255.00 (GBP)
 [Excl. VAT]


Product News View All
 23 October 2007:
New range of Galep Programmers - Conitec Datensysteme GmbH **Now in stock** >>


Associated Products View All
Adaptors
Conitec 210841: Socket Adaptor- 40-pin DIL to 44-pin PLCC for 16-Bit EPROMs and MCs >>
Conitec 210842: Socket Adaptor- 32-pin DIL to 32-pin PLCC for 8-Bit EPROMs >>
Conitec 210843: Socket Adaptor- 28-pin DIL to 32-pin PLCC for 8-Bit EPROMs >>
Conitec 210844: Socket Adaptor- 20-pin DIL to 20-pin PLCC for GALs and PALCEs >>
Conitec 210845: Socket Adaptor- 24-pin DIL to 28-pin PLCC for GALs and PALCEs >>
Conitec 210846: Socket Adaptor- 40-pin DIL to 44-pin SOP for Flash devices >>
Power Supplies
Mains Power Supply Adaptor (Input: 100-240V AC, Output: 13.6V DC regulated@0.75A) >>
