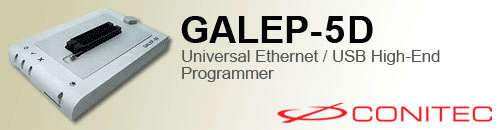

Conitec - Galep-5D - Universal Ethernet / USB High-End Programmer - Overview





The GALEP-5D is a Universal Programmer featuring up to 240 pin drivers, Ethernet and USB port hubs. It is a high-end programming device with a unique module concept for heavy-duty use in production and development.

There are 3 versions, depending on requirements:

GALEP-5D-60 with 60 Pins
GALEP-5D-120 with 120 Pins
GALEP-5D-240 with 240 Pins




Features



High-Speed Hardware
Universal pin driver circuitry (60 / 120 / 240 drivers)
Device Support
Standalone Mode
In System Programming
Software
Security
Modules and Adapters
Technical Specifications
System requirements

High-Speed Hardware
  • GALEP-5D is uncompromisingly designed for speed. The programming algorithms run on an internal 200 MIPS ARM-9 processor under Embedded Linux. The processor directly controls the pin drivers via up to 4 FPGAs, which ensure the perfect adaptation of the components to the programming algorithms. The FPGAs (user-programmable logic) allow the realization of State Machines, UARTs etc. and thus support time-critical components that wouldn't be programmable at all with pure software solutions. The programming cycle times are extremely short, close to the specified mimimum times of the components. The internal 128 MB RAM serves as data storage and allows you to transfer the data only once for programming multiple devices

Universal pin driver circuitry (60 / 120 / 240 drivers)
  • A universal pin driver circuit especially designed for GALEP guarantees optimal signal quality for the component to be programmed. Each of the 48 pins carries the following signals: Logical high, adjustable between 1.3V ... 5.0V, Logical input threshold adjustable between 0.5V 5.0V, Three independent programming voltages up to 25V ground,  Three switchable resistors for pullup and pulldown, Adjustable clock rate
  • The switching regulators for the programming voltages are controlled by D/A converters in 100 mV steps. Further D/A converters are used to control the logic levels (1.3V ... 5.0V) and the input threshold (0.5V 5.0V). All voltages are permanently monitored by an independent coprocessor
  • A universal pin driver concept with as many pins as possible reduces the requirements of adapters and thus ensures an overall low cost programming system

Device Support
  • 4937 devices supported by package
  • 10,421 devices supported by name
  • For full device support list, see seperate tab

Standalone Mode
  • This feature is currently in development and will be available shortly as a free update. It allows using GALEP-5D in mass production without a PC. The programming data can be stored on SD card or on a local server connected via Ethernet. For programming multiple components, several GALEP-5D devices can be controlled simultaneously (cluster- or gang-programming)

In System Programming
  • The signals for in-system programming (ISP) can be taken from a separately available ISP adapter or directly from the 48-pin ZIF socket. The help system provides information about the wiring of the target system for all supported components

Software
  • The program runs under Windows 95, 98, ME, NT4, 2000, XP, and Vista. it features a comprehensive set of basic functions such as read, program, compare and delete, along with easy-to-use custom configuration options for any special functions required by the selected component. The editor allows a multitude of functions for editing component contents which can be saved and loaded in binary, intel-hex, motorola-s or jedec file format. Mass production is supported by providing statistics functions and serial number generation
  • JTAG Support: Delete, program and verify components with JTAG interface (joint test action group, IEEE Std. 1149.1 ). The following formats are supported: SVF-Script in XSVF(Xilinx) format; JAM byte code player (ALTERA)
  • The software is permanently improved for supporting new components. If you need a certain device supporting a free Device on Demand Service is available through Conitec. Free updates are available website in monthly intervals.

Security
  • Prior to each function, GALEP checks the power consumption, correct positioning, and the contacts of all pins of the selected component. This prevents accidental damage to the component or the device

Modules and Adapters
  • GALEP-5D comes with a DIL-48 module and programs all components in DIL sockets of up to 48 Pins between 300 600 MIL (ca. 7,5 16 mm) wide, without additional adapters. All GALEP-4 and GALEP-5 adapters can be used with the DIL-48 module of GALEP-5D
  • An advantage of GALEP-5D is the unique module concept. The DIL Modul can be replaced in seconds with a module for a different socket. Modules for all sockets up to 240 pins are available. e.g. a single QFP-120 GALEP-5D module replaces all 5 Fujitsu QFP-120-adapters for GALEP-4, and additionally can program all other devices in the same socket. When frequently programming components with high pin numbers, this provides a good cost-advantage

Technical Specifications
  • Format: ca. 118x172x22mm (+7mm socket)
  • Weight: ca. 750 g
  • DIL Module with 48-pin ZIF socket
  • Up to 240 universal pin drivers
  • Programs low-voltage components down to 1.3V
  • Mini USB 2.0 high-speed port
  • Ethernet 10/100 port
  • SD memory card slot
  • 200 MIPS ARM-9 RISC processor, 128 MB RAM, 8 MB Flash
  • Up to 4 FPGAs (50K gates, 64Kb RAM)
  • 3 linear voltage regulators for internal power supply
  • 4 switching regulators for programming voltages
  • 2 linear voltage regulators for logic levels and input threshold
  • 2 Microcontrollers for internal voltage monitoring
  • 8-channel D/A converter, 16-channel A/D converter
  • Embedded Linux 2.6 inside
  • Robust aluminium case

System requirements
  • PC or Laptop with Pentium Processor
  • Windows 95 / 98 / ME / NT4 / 2000 / XP / Vista
  • USB 1.0 or USB 2.0 port, or Ethernet port



Product Versions

Conitec - Galep-5D - 120-pin Universal Ethernet / USB High-End Programmer
The GALEP-5D is a Universal Programmer featuring 120 pin drivers plus Ethernet and USB connectivity.
Manufacturer:  Conitec
Order Code:  CON-GALEP5D120
Discontinued Product
Conitec - Galep-5D - 240-pin Universal Ethernet / USB High-End Programmer
The GALEP-5D is a Universal Programmer featuring 240 pin drivers plus Ethernet and USB connectivity.
Manufacturer:  Conitec
Order Code:  CON-GALEP5D240
Quantity Price (GBP) [Excl. VAT]
1 and above
1,537.59

Availability:
0 in stock
10 days delivery
Conitec - Galep-5D - 60-pin Universal Ethernet / USB High-End Programmer
The GALEP-5D is a Universal Programmer featuring 60 pin drivers plus Ethernet and USB connectivity.
Manufacturer:  Conitec
Order Code:  CON-GALEP5D60
Quantity Price (GBP) [Excl. VAT]
1 and above
1,338.60

Availability:
0 in stock
10 days delivery
