Olimex - SAM9-L9260 Development Board for AT91SAM9260 Microcontrollers




The SAM9-L9260 is low cost development platform with ARM9 microcontroller, 64MB SDRAM and 512MB NAND Flash. The board has Ethernet 100Mbit controller, USB host, USB device, RS232 and 40 pin extension port. All unused SAM9260 ports are available for add-on boards. The SAM9-L9260 has spare capacity of Flash and RAM, and runs Linux, WindowsCE and other RTOS natively. The RTC clock is backed-up with a 3V Li battery.



Features



Main Features
  • MCU: AT91SAM9260 16/32 bit ARM9™ 180MHz operation
  • Standard JTAG connector with ARM 2x10 pin layout for Programming/debugging with ARM-JTAG
  • 64 MB SDRAM
  • 512MB NAND Flash (seen in Linux as silicon drive)
  • Ethernet 100Mbit connector
  • USB host and USB device connectors
  • RS232 interface and drivers
  • SD/MMC card connector
  • One user button and one reset button
  • One power and two status LEDs
  • On board voltage regulator 3.3V with up to 800mA current
  • Single power supply: 5V DC required
  • Power supply filtering capacitor
  • 18.432 Mhz crystal on socket
  • Extension header
  • PCB: FR-4, 1.5 mm (0,062"), soldermask, silkscreen Component print
  • Dimensions: 100 x 80 mm (3.94 x 3.15")

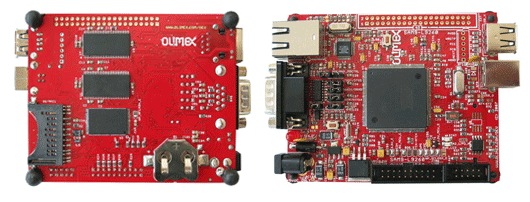

Product Pictures




Device Support (by family)



This product supports devices from the families listed below:

Atmel Corporation:
  • AT91SAM9xxxx Microcontroller Family



Device Support (by manufacturer / programming algorithm)




Atmel Corporation

JTAG - In System Programming (ISP) via JTAG Debug Port (chargeable upgrade for Equinox Programmers):
AT91SAM9xxxx Microcontroller Family:
AT91SAM9260



Ordering Information...
