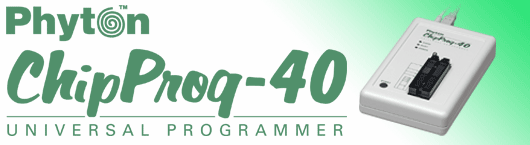

Phyton ChipProg-40 - Universal Device Programmer (USB) |
|
|
|
|
|
| |
The Phyton ChipProg-40 is a high-speed Universal Device Programmer supporting programming of many EPROM, FLASH and Microcontroller devices. Fast programming speeds are guaranteed due to the USB connection to the PC. The programmer features a 40-pin ZIF socket allowing it to support DIL devices up to 40 pins. The ChipProg-40 also supports In-System Programming (ISP) of AVR and PIC microcontrollers using the optional ISP adaptor. |
| |
|
|
 |
Features |
|
- Supports parallel & serial EPROM & EEPROM; microcontrollers, and PAL/PALCE/GAL/PEEL/PLD devices
-
Programs all DIP-packed device from 6 to 40 pin via a 40-pin pin ZIF DIP socket - no additional adapters are required
-
Optional adapters for programming devices in PLCC, SOIC, SSOP, QFP, BGA, QFN, SON and other packages are available
-
Provides very fast operations - programs a 64 MBit NOR flash memory device for less than 50 sec
-
Supports in-system programming for the devices allowing the ISP (ICP) mode via special cables-adapters
-
Communicate to a PC via a USB 2.0 compatible port
-
Being based on four independently working 32-bit microcontrollers and FPGAs, provides very fast loading & programming
-
Works under control of Windows 9x/2000/NT/XP/Vista. Easy-to-use and intuitive user interface
-
Allows to work in a multi-programmer mode - unlimited number of ChipProg units can be driven from one computer
-
'Start' button for fast manual operations programmable to execute a single operation or a batch of them
-
Supports loading files of all popular formats: Intel HEX, Binary, Motorola S-format, POF, JEDEC, PRG, ASCII Hex & Octal, etc.
-
Built-in editor supports sophisticated operations with blocks
-
Vpp and other parameters precise adjustment via the software settings
-
Splits files to multiple images
-
Embedded script language for automation of routine operations
-
Serialization of the programmed devices by writing a serial number into a specified target memory location
-
Calculation of the control sum with capability to write it into a specified target memory location
-
A unique signature can be written into a specified target memory location
-
Advanced self-diagnostic start-up routine that check the target device reliable contact in the programming socket
-
Incorrect device insertion check and overcurrent protection; automatically detects bad contacts before starting any operation
-
Lifetime free software updates via Web
-
Very small – 160x90x25 mm (6¼x3¾x1 inch)
|
| |
| |
Device Support (by family) |
|
|
|
|
|
| This product supports devices from the families listed below: |
| |
|
| |
|
Please note:
Not all devices may be supported within a family.
Please see the Detailed Device Support List for a list of all devices which the product supports.
|
| |
|  |
|
