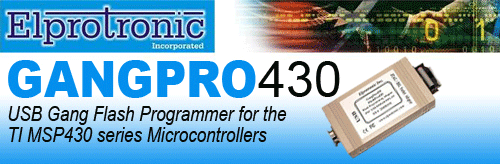

GangPro430 USB Gang Flash Programmer for the TI MSP430 series Microcontrollers





Includes USB Gangpro430 programming adapter, USB JTAG/BSL cable, CD with software and documentation. Software - GangPro430-JTAG software with serialization, GangPro430-BSL software without serialization, FlashPro430-JTAG software with serialization, MSP430.dll for debugging (JTAG In-Circuit Debugger) with IAR-IDE etc, Multi-FPA API-DLL for remote control (Gang and Single options).




Features



Features
  • Up to 8 USB-FPA can be connected to one PC
  • Six MSP430 - 60 kB Flash each - can be programmed via JTAG simultaneously in 5 seconds
  • 60 kB Flash can be erased, blank checked, programmed and verified in 8 seconds
  • 48 pcs of the MSP430 - 60 kB Flash each can be programmed simultaneously in 5 to 7 seconds using Multi-FPA API-DLL and eight USB-GangPro430
  • GANG BSL option - up to six MSP430 can be programmed via BSL
  • User defined programming sequence (script file)
  • Command line interpreter running from command prompt
  • Gang Splitter allows to connect six target devices to GangPro430 adapter
  • Full Speed USB 1.1 (12 Mb/s) communication interface
  • Up to 6 MSP430Fxx can be programmed simultaneously from one GangPro430
  • Six MSP430 with 60 kB Flash each can be programmed via JTAG simultaneously in 5 seconds
  • 60 kB Flash can be erased, blank checked, programmed and verified in 8 seconds using JTAG interface, and in 12 seconds using BSL interface
  • Up to 8 GangPro430 can be connected to one PC
  • 48 pcs of the MSP430 with 60 kB Flash each can be programmed simultaneously in 5 to 7 seconds using Multi-FPA API-DLL and 8 GangPro430 FPAs
  • Supports the JTAG, Spy-Bi-Wire and BSL interfaces
  • Supports all MSP430Fxx microcontrollers
  • NEW! Automated DCO calibration - up to eight DCO frequency can be calibrated and related DCO registers saved in the FLASH INFO memory
  • User defined programming sequence uses script file. No programming technique and language knowledge is required
  • No code size limitations
  • Blow the JTAG security fuse capability
  • Target device can be powered from the programming adapter (programmable Vcc from 2.2V to 3.6V step 0.2V) or from an external source (2.2V to 3.6V)
  • Easy to use WindowsTM based software
  • Programmer accepts TI (*.txt), Motorola (*.s19, *.s28, *.s37), Intel (*.hex) and *.d43 and *.a43 data files for programming
  • Combine code files capability
  • Lock setup capability, useful in production
  • Unique serial number assign capability. Software package can assign and automatically increment serial numbers, model types and revision. Serial Number with or without an automatically inserted current date can be stored in the FLASH memory in HEX, BCD or ASCII format
  • Log file capability allowing to review information about the flashed target devices
  • Can be connected to the single target device with the standard TI's JTAG pinhead connector
  • FlashPro430 software can be used with the GangPro430 programming adapter to reach a single target device
  • MSP430.DLL library allows use the USB Gang Adapter as an JTAG In-Circuit Debugger with single targets device like a FET (Flash Emulation Tool) with the IAR, Quadravox, NoICE or CrossWorks IDE debugging software
  • The USB-MSP430-FPA-GANG adapter can be used with the FlashPro430 software that allows to access only one target device via JTAG interface. See the FlashPro430 feature for details with JTAG communication speed 1Mb/s and 400kb/s
  • Multi-FPA API-DLL software package can control up to eight GangPro430 FPAs (working simultaneously) from other programs. Using eight GangPro430 FPAs the programming time of the 48 target devices is almost the same programming time of the six target devices programmed from one FPA
  • Perfect for production usage
  • NEW! Command line interpreter shell for the Multi-FPA API-DLL that allows to use the command prompt technique for remote control up to eight GangPro430 FPAs (working simultaneously).
  • Source code for the Multi-FPA API-DLL demo written in Visual C++.net, Visual Basic.net, LABView 7.1, and for the DOS-command application




Device Support (by family)



This product supports devices from the families listed below:

Texas Instruments:
  • MSP430 Flash Microcontroller Family



Please note:
Not all devices may be supported within a family.
Please see the Detailed Device Support List for a list of all devices which the product supports.




Ordering Information...




GangPro430 USB Gang Flash Programmer for the TI MSP430 series Microcontrollers
Includes USB Gangpro430 programming adapter, USB JTAG/BSL cable, CD with software and documentation.
Manufacturer:  Elprotronic Inc.
Order Code:  ELP-GangPro430
Quantity Price (GBP) [Excl. VAT]
1 - 9
252.32
10 and above
239.70

Availability:
0 in stock
5 days delivery
Product Information
Product:  GangPro430 USB Gang Flash Programmer for the TI MSP430 series Microcontrollers
Manufacturer:  Elprotronic Inc.
Order Code:  ELP-GangPro430
Availability:  0 in stock
5 days delivery
Price:   252.32 (GBP)
 [Excl. VAT]


Device Support
Device Support List
