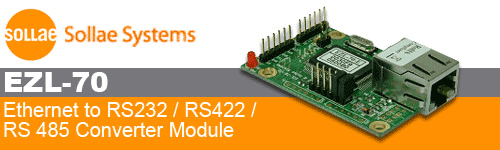

Sollae EZL-70 - Ethernet to RS232 / RS422 / RS 485 Converter Module




The EZL-70 is a module with a RJ45 connector for manufacturers who want to embed Ethernet connectivity in their products quickly and easily. The compact EZL-70 module adds network connectivity to your devices with a serial interface on its host microcontroller. It reduces cost and risk and shortens development time to add networking capability as a standard feature. It adds network connectivity to your devices by processing TCP/IP protocol which is required to send and receive data over the Internet. The EZL-70 also makes it possible to extend the distance of serial communications without any change of your legacy systems or replace direct serial connection to allow devices to be remotely controlled, managed and monitored over the Internet. Because of the RS232, RS422 and RS485 it is ideal for various applications.



Features

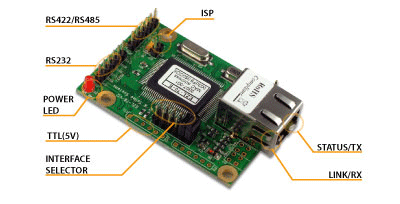

Functional diagram

Product highlights
  • Access, Monitor, Manage and Control devices over a network or the internet
  • 10Base-T Ethernet Interface
  • Supports RS232/RS422/RS485 Communication
  • 5V TTL UART Interface
  • Very compact size to be embedded easily
  • Supports DHCP and PPPoE for xDSL connection
  • Supports variety of TCP/UDP host connecting modes
  • AT commands to control network connection
  • Easy configuration utility via network (ezConfig)
  • Virtual COM Port Redirector (ezVSP) included
  • Firmware is upgradable through network
  • Environmentally-friendly RoHS compliant

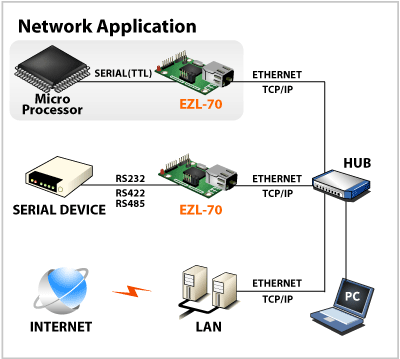

System implementation overview

Detailed Specification



Ordering Information...




Sollae EZL-70 - Ethernet to RS232 / RS422 / RS 485 Converter Module
The EZL-70 is a Ethernet to RS232 / RS422 / RS 485 Converter Module with a RJ45 connector.
Manufacturer:  Sollae Systems
Order Code:  SOL-EZL-70
Quantity Price (GBP) [Excl. VAT]
1 - 9
38.50
10 and above
36.58

Availability:
5 in stock
Product Information
Product:  Sollae EZL-70 - Ethernet to RS232 / RS422 / RS 485 Converter Module
Manufacturer:  Sollae Systems
Order Code:  SOL-EZL-70
Availability:  5 in stock
Price:   38.50 (GBP)
 [Excl. VAT]


Downloads
Download View Downloads for this Product


Associated Products View All
Power Supplies
UN Mains Power Supply Adaptor: 5V DC @1A Reg. Output with 2.5mm Barrel Plug >>
