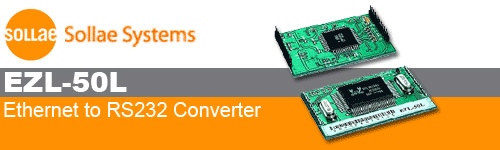

Sollae EZL-50L - Ethernet to RS232 Converter |
|
|
|
|
|
|
The EZL-50L is a module for manufacturers who want to embed Ethernet connectivity in their products easily and economically. The compact EZL-50L module adds network connectivity to devices with a serial interface on its host microcontroller. It reduces cost and risk and shortens development time to add networking capability as a standard feature. It adds network connectivity to devices by processing TCP/IP protocol which is required to send and receive data over the Internet. EZL-50L also makes it possible to extend the distance of serial communications without any change of your legacy systems or replace direct serial connection. Therefore devices can be remotely controlled, managed and monitored over the Internet. Because of its low cost, it is ideal for high-volume products. |
|
|
 |

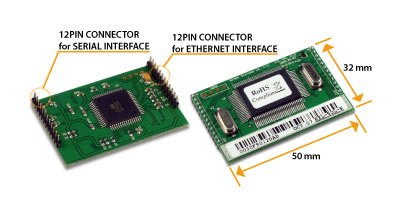

Functional diagram |
|

|
 |
Product highlights |
|
- Access, Monitor, Manage and Control devices over a network or the internet
-
10Base-T Ethernet Interface
-
5V TTL UART Interface
-
Very compact size to be embedded easily
-
Supports DHCP and PPPoE for XDSL connection
-
Supports variety of TCP/UDP host connecting modes
-
AT commands to control network connection
-
Easy configuration utility Via network (ezConfig)
-
Virtual COM Port Redirector (ezVSP) included
-
Firmware is upgradable through network
-
Environmentally-friendly RoHS compliant
|
 |

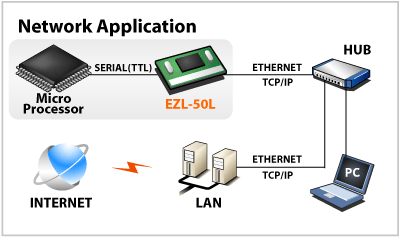

System implementation overview |
|

|
 |
Specifications |
|
Serial Physical Interface |
Serial Interface |
5V TTL UART - RXD, TXD, RTS, CTS |
Connector |
1x12 2mm pitch male header |
Serial Port Property |
Baudrate |
1200 bps ¡ 115200 bps |
Data Bits |
7, 8 bits |
Parity |
None, Even, Odd |
|
 |
Applications |
|
- Patient Monitoring
-
POS system
-
Power Management
-
Fair Collection
-
Card Approval
-
RFID Systems
-
Bank Automation
-
Access Control
-
Mobile Testing
-
Remote Monitoring
-
Power monitoring
-
Queuing System
-
Meter Reading
-
Power Management
-
Energy Management
-
Elevator Monitoring
-
Advertisement
|
|
 |
Sollae EZL-50L - Ethernet to RS232 Converter
The EZL-50L is a module to embed Ethernet connectivity. It adds network connectivity to devices with a serial interface on its host microcontroller.
