Sollae EZL-80C - Wireless Networking Module |
|
|
|
|
|
|
The EZL-80c is a wireless networking module that allows embedded wireless connectivity to be added to products easily and economically. The compact EZL-80c module adds network connectivity to devices with a serial interface on its host microcontroller. It reduces cost and risk and shortens development time for adding networking capability as a standard feature. It adds network connectivity to devices by processing TCP/IP protocol which is required to send and receive data over the Internet. It is possible to extend the distance of serial communications without any change of your legacy systems or replace direct serial connection. Therefore devices can be wirelessly controlled, managed and monitored over the Internet. |
|
|
 |

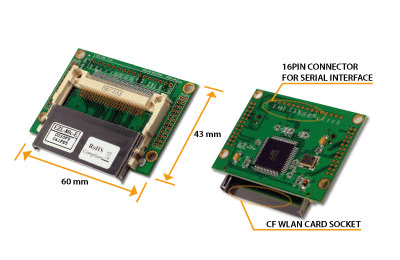

Functional diagram |
|

|
 |
Product highlights |
|
- Wireless access, monitor, manage and control devices over a wireless LAN
-
3.3V TTL UART Interface
-
Supports INFRASTRUCTURE & AD-HOC
-
CF wireless LAN card required
-
Supports DHCP
-
Supports variety of TCP/UDP host connecting modes
-
AT commands to control network connection
-
Easy configuration utilities via serial and network (ezSerialConfig, ezConfig)
-
Virtual COM Port Redirector (ezVSP) included
-
Firmware is upgradable through the serial port
-
Environmentally-friendly: RoHS compliant
|
 |

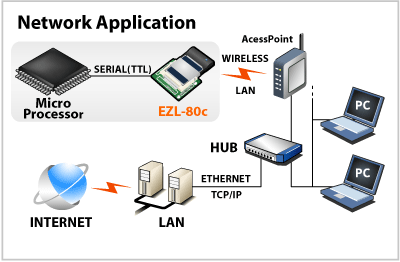

System implementation overview |
|

|
 |
Specifications |
|
Serial Physical Interface |
Serial Interface |
3.3V TTL UART - RXD, TXD, RTS, CTS |
Connector |
2.54mm pitch header |
Serial Port Property |
Baudrate |
1200 bps ¡ 115200 bps |
Data Bits |
7, 8 bits |
Parity |
None, Even, Odd |
|
 |
Applications |
|
- Automobile Diagnosis
-
Card Approval
-
Servival game
-
Elevator Monitoring
-
Advertisement
|
|
 |
Sollae EZL-80C - Wireless Networking Module
The EZL-80c is a wireless networking module that allows embedded wireless connectivity to be added to products easily and economically.
