Sollae EZL-300S - Wireless to Serial Converter |
|
|
|
|
|
| |
The EZL-300S is a wireless converter for serial devices. It adds network connectivity to devices by processing TCP/IP protocol which is required to send and receive data over the Internet. The EZL-300S also makes it possible to extend the distance of serial communications without any change to existing legacy systems or replace direct serial connection. This is a simple and easy way to bring the advantages of remote control and management to serial devices. By using the EZL-300S devices can be wirelessly controlled, managed and monitored over the Internet. Additionally, the EZL-300S supports secure data communications and Telnet COM Port Control Protocols and Multi-Monitoring so that it can be used for various applications.
|
| |
|
|
 |
Functional diagram |
|
|
|
|

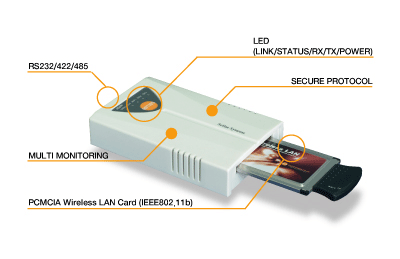

Product highlights |
|
- Wireless Access, Monitor, Manage and Control devices over wireless LAN
- Supports RS232/RS422/RS485 Communication
- Powerful security function : SSL3.0/TLS1.0, IP filtering, Password
- Supports multi monitoring function (maximum 8 channels)
- Supports INFRASTRUTURE & AD-HOC
- Supports DHCP
- Supports EAP-MD5
- Supports variety of TCP/UDP host connecting modes
- AT commands to control network connection
- Easy configuration utility via serial and network (ezSerialConfig, ezConfig)
- Virtual COM Port Redirector (ezVSP) included
- Supports RFC2217, Telnet COM Port Control protocol
- Firmware is upgradable through the network
- Environmentally-friendly RoHS compliant
|
|

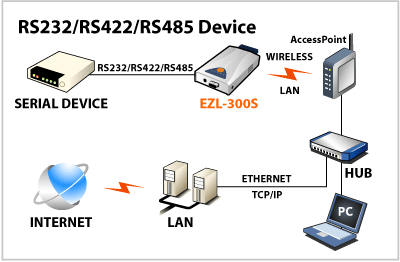

System implementation overview |
|
|
|
|
Specifications |
|
|
|
Serial Physical Interface |
|
Serial Interface |
RS232 - RXD, TXD, RTS, CTS, DTR, DSR, RI, DCD |
|
RS422 - RX+, RX-, TX+, TX- |
|
RS485 - RT+, RT- |
|
Interface Type is selectable by Software |
|
¡¾15KV ESD Protection |
|
Connector |
DB9M DTE Connector |
|
Serial Port Property |
|
Baudrate |
1200 bps ¡ 115200 bps |
|
|
Applications |
|
- Card Approval
-
