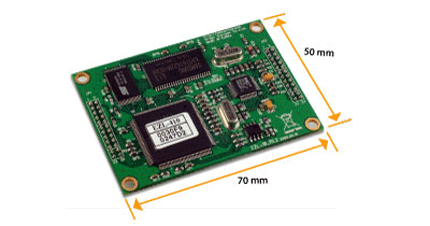

Sollae EZL-410 - 4 Channel Ethernet to Serial Module |
|
|
|
|
|
| |
The EZL-410 is a module for manufacturers who want to embed Ethernet connectivity in their products quickly and easily. The compact EZL-410 module adds network connectivity to devices with a serial interface on its host microcontroller. It reduces cost and risk and shortens development time to add networking capability as a standard feature. It adds network connectivity to devices by processing TCP/IP protocol which is required to send and receive data over the Internet.The EZL-410 also makes it possible to extend the distance of serial communications without any change of to the legacy systems or replacing direct serial connection. Devices can be remotely controlled, managed and monitored over the Internet. Because it has four UART interfaces, it is ideal for various applications. |
| |
|
|
 |
Functional diagram |
|
|
|
|
Product highlights |
|
- Access, Monitor, Manage and Control devices over a network or the internet
-
Four 3.3V TTL UART Interface
-
10/100Base-T Ethernet Interface
-
Powerful security function : SSL3.0/TLS1.0, Password
-
Supports DHCP and PPPoE for xDSL connection
-
Supports variety of TCP/UDP host connecting modes
-
AT commands to control network connection
-
Easy configuration utility via network (ezConfigMp)
-
Virtual COM Port Redirector (ezVSP) included
-
Firmware is upgradable through the serial port or network
-
Environmentally-friendly RoHS compliant
|
|

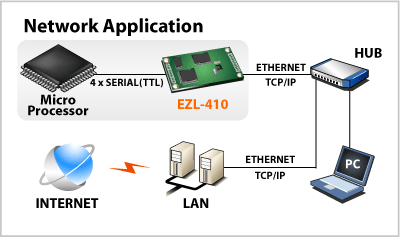

System implementation overview |
|
|
|
|
Specifications |
|
|
Serial Physical Interface |
|
Serial Interface |
4 x TTL ports (3.3V) RXD, TXD, RTS, CTS |
|
Connector |
2x12 2mm pitch male header |
|
Serial Port Property |
|
Baudrate |
1200 bps ¡ 115200 bps |
|
Data Bits |
5, 6, 7, 8 bits |
|
Parity |
None, Even, Odd |
|
|
Applications |
|
- Patient Monitoring
-
POS system
-
Power Management
-
Fair Collection
-
Card Approval
-
RFID Systems
-
Bank Automation
-
Access Control
-
Mobile Testing
-
Remote Monitoring
-
Power monitoring
-
Queuing System
-
Meter Reading
-
Power Management
-
Energy Management
-
Elevator Monitoring
-
Advertisement
|
| |
 |
Sollae EZL-410 - 4 Channel Ethernet to Serial Module
The compact EZL-410 is a module for manufacturers who want to embed Ethernet connectivity in their products quickly and easily. It adds network connectivity to devices with a serial interface on its host microcontroller.
| Quantity |
Price (GBP) [Excl. VAT] |
| 1 - 4 |
|
| 4 and above |
|
|
|
|
|  |
|
View Downloads for this Product
