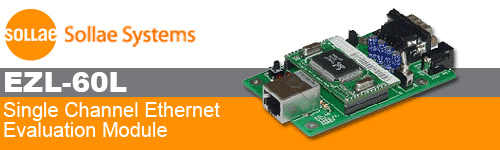

Sollae EZL-60L - Single Channel Ethernet Evaluation Module





The EZL-60L is a board-level product for manufacturers who want to embed Ethernet connectivity in their products easily and economically. The compact EZL-60L module adds network connectivity to devices with a serial interface on its host microcontroller. It reduces cost and risk and shortens development time to add networking capability as a standard feature. It adds network connectivity to devices by processing TCP/IP protocol which is required to send and receive data over the Internet. The EZL-60L also makes it possible to extend the distance of serial communications without any change of existing legacy systems or replacing direct serial connection. Devices can be remotely controlled, managed and monitored over the Internet. Because of its robust TCP/IP stack, it is ideal for various applications.




Features

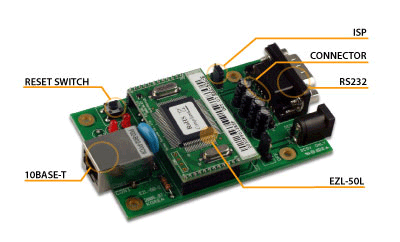

Functional diagram

Product highlights
  • Access, Monitor, Manage and Control devices over a network or the internet
  • 10Base-T Ethernet Interface
  • Supports RS232 Communication
  • Supports DHCP and PPPoE for xDSL connection
  • Supports variety of TCP/UDP host connecting modes
  • AT commands to control network connection
  • Easy configuration utility via network (ezConfig)
  • Virtual COM Port Redirector (ezVSP) included
  • Firmware is upgradable through network
  • Environmentally-friendly RoHS compliant

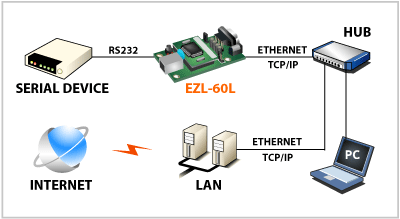

System implementation overview

Specifications

Serial Physical Interface

Serial Interface

RS232 - RXD, TXD, RTS, CTS, DTR-DSR loopbacked

Connector

DB9M DTE Connector

Serial Port Property

Baudrate

1200 bps 115200 bps

Data Bits

7, 8 bits

Parity

None, Even, Odd

Applications
  • Extending distance
  • Console Monitoring
  • Card Approval
  • Weather Monitoring
  • Advertisement




Ordering Information...




Sollae EZL-60L - Single Channel Ethernet Evaluation Module
The compact EZL-60L is a board-level product for manufacturers who want to embed Ethernet connectivity in their products easily and economically. It adds network connectivity to devices with a serial interface on its host microcontroller.
Manufacturer:  Sollae Systems
Order Code:  SOL-EZL-60L
Quantity Price (GBP) [Excl. VAT]
1 - 4
47.74
5 and above
45.35

Availability:
1 in stock
Product Information
Product:  Sollae EZL-60L - Single Channel Ethernet Evaluation Module
Manufacturer:  Sollae Systems
Order Code:  SOL-EZL-60L
Availability:  1 in stock
Price:   47.74 (GBP)
 [Excl. VAT]
