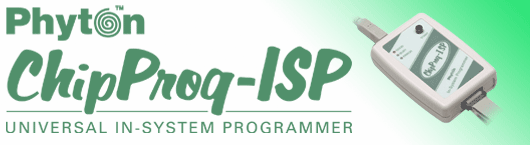

Phyton ChipProg-ISP Universal In-System Programmer |
|
|
|
|
|
| |
| Phyton ChipProg-ISP Universal In-System Programmer |
| |
|
|
 |
Features |
|
- Supports in-system programming for a variety of embedded microcontrollers, serial EEPROM & flash memory devices
-
Palm size tool - 4"x2½"x1" (100x70x25 mm)
-
Communicate to a PC via a USB 2.0 compatible port
-
Any number of concurrently working ChipProg-ISP chip burners can be driven from one computer or via a USB active hub
-
Does not require an additional power adapter for the programming - the power is taken from the computer USB port
-
Has a standard 14-pin connector for plugging changeable ISP cables connecting to the target
-
The output connector is protected against incorrect connection to the target
-
Being based on four independently working 32-bit microcontrollers and FPGAs, provides very fast loading & programming
-
Works under control of Windows 9x/2000/NT/XP/Vista. Easy-to-use and intuitive user interface
-
Allows to work in a multi-programmer mode - unlimited number of ChipProg-ISP units can be driven from one computer
-
'Start' button for fast manual operations programmable to execute a single operation or a batch of them
-
Vpp and other parameters precise adjustment via the software settings
-
Project management - you can create, open and store an unlimited number of projects in the programmer software shell
-
Supports loading files of all popular formats: Intel HEX, Binary, Motorola S-format, POF, JEDEC, PRG, ASCII Hex & Octal, etc.
-
Built-in editor supports sophisticated operations with blocks
-
Splits files to multiple images
-
Embedded script language for automation of routine operations
-
Serialization of the programmed devices by writing a serial number into a specified target memory location
-
Calculation of the control sum with capability to write it into a specified target memory location
-
A unique signature can be written into a specified target memory location
-
Advanced self-diagnostic start-up routine that check the target device reliable contact through the ISP programming cable
-
Incorrect device connection check and overcurrent protection
-
Lifetime free software updates via Web
-
Palm size tool - 4"x2½"x1" (100x70x25 mm)
|
| |
| |
Device Support (by family) |
|
|
|
|
|
| This product supports devices from the families listed below: |
| |
|
| |
|
Please note:
Not all devices may be supported within a family.
Please see the Detailed Device Support List for a list of all devices which the product supports.
|
| |
This product has been discontinued. Please refer to the Replacement Product instead:
 |
Phyton CP12-B1 - In-System Device Programmer
The CPI2-B1 device programmer belongs to the ChipProg-ISP2 family of Phyton in-system production device programmers, designed for use with ATE, ICT, programming fixtures and automated handlers.
| Quantity |
Price (GBP) [Excl. VAT] |
| 1 and above |
557.50
|
|
|
|
|  |
| Product Information |
| Phyton ChipProg-ISP Universal In-System Programmer |
| Phyton |
|
|
|
PHY-CHIPPROG-ISP |
| 1695671 |
| Discontinued Product |
|
|
View Downloads for this Product
