20-way ISP cable  (0.1" IDC ribbon cable) for ARM microcontrollers

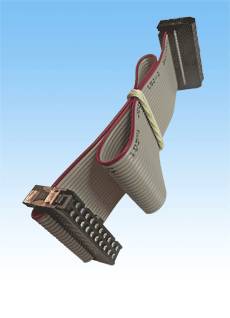

The CAB-ARM-20W cable is a 20-way In-System Programming (ISP) ribbon cable designed to connect from any ISP programmer  which features a 20-way IDC connector to a 20-way 0.1" pitch IDC connector on a suitable ARM microcontroller Target System. The cable features 200mm of flat ribbon cable with a 20-way 0.1" pitch female IDC connector on each end. The IDC connectors are fitted with 'cable grips' and are bump polarised to prevent the connector being plugged in the wrong way around.

The CAB-ARM-20W cable is suitable for use with the Equinox ISPnano programmer family which support the 20-way ARM connector interface. This cable is also compatible with any other programmer or 'Starter Kit' which features the 20-way 0.1" pitch IDC connector.




Features



Specification
  • Cable length (connector to connector): 200mm
  • Cable type: 20-way flat ribbon cable (red stripe denotes pin 1)
  • Each end of the cable is terminated with a 20-way 0.1" pitch IDC female connector
  • Connectors are fitted with 'cable grips' for added resilience.
  • Connectors are bump-polarised to stop the connector being plugged in the wrong way around

This cable is compatible with the following equipment
  • Equinox ISPnano programmer family - ISPnano Series 3, Series IV, ISPnano-MUX
  • Equinox CONMOD connector module
  • Any other ARM microcontroller programmer, ARM 'Starter Kit' or ARM 'evaluation board' which features the standard ARM 20-way 0.1" pitch IDC connector.

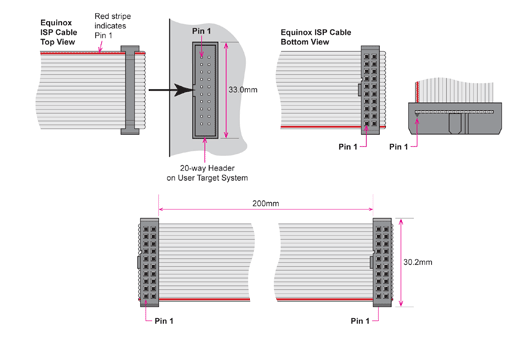

Cable layout




Ordering Information...




20-way ISP cable (0.1" IDC ribbon cable) for ARM microcontrollers
20-way ISP (In-System Programming) cable (0.1" IDC ribbon cable) for ARM microcontrollers
Manufacturer:  Equinox Technologies
Order Code:
Equinox:  CAB-ARM-20W
 483-1032-ND
Quantity Price (GBP) [Excl. VAT]
1 and above 4.95

Availability:
0 in stock
7 days delivery
Product Information
Product:  20-way ISP cable (0.1" IDC ribbon cable) for ARM microcontrollers
Manufacturer:  Equinox Technologies
Order Code:
Equinox:  CAB-ARM-20W
 483-1032-ND
Availability:  0 in stock
7 days delivery
Price:   4.95 (GBP)
 [Excl. VAT]
