ISPnano - CONMOD 1 - Connector Module |
|
|
|
|
|
| |

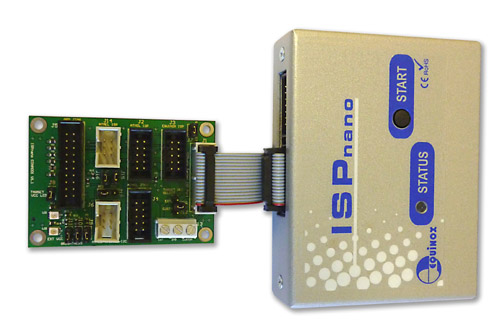

The ‘CONMOD Module’ is an interconnection module between an ‘ISPnano programmer’ and the user ‘Target System (DUT)’. It features most of the popular ISP headers which can be used to connect to Target Devices. The module connects to the ‘ISPnano programmer’ via a 16-way IDC cable as shown in the picture below.  |
| |
|
|
|
 |
Main Features |
|
- ISP Header Connector module compatible with all ISPnano programmers
-
Features most popular ‘ISP Headers’ allowing direct connection to a DUT via the standard ISP cable for the selected device.
-
Connects to any ISPnano programmer via 16-way IDC cable
-
Headers include Atmel AVR 10-way, Atmel AVR 6-way, Atmel 10-way JTAG, Equinox 10-way, ARM 20-way debug header, I2C (2-wire) Header
-
Atmel ‘XMEGA PDI’ header included on PCB version 2.0
-
Atmel ‘ATtiny TPI’ header included on PCB version 2.0
-
Target Power LED indicator
-
Target power selection jumpers
-
External power input for powering target fro an external source
|
|

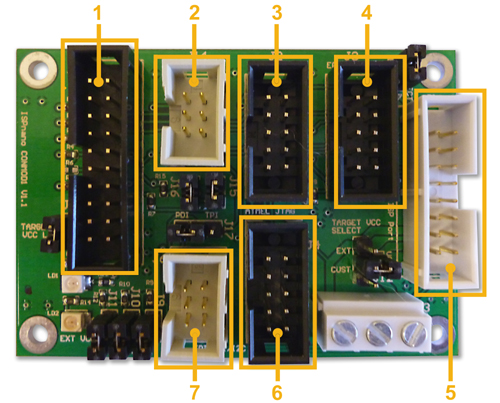

ISP Headers |
|
|
|
- 1 ARM 20-way JTAG Debug connector
-
2 Standard ‘Atmel 6-way ISP header’
-
3 Standard ‘Atmel 10-way ISP header’
-
4 Standard ‘Equinox 10-way ISP’ header
-
5 ISPnano ‘Target ISP Port’ (16-way IDC connector)
-
6 Atmel AVR – JTAG 10-way ISP header
-
7 XMEGA PDI and I2C Header
|
| |
|  |
|
