3-IN-1 fast USB ARM JTAG, USB-to-RS232 virtual port and power supply 5-9-12VDC device (supported by OpenOCD open source ARM debugger)
|
| |
|
|
 |
Main Features |
|
- First on the market three-in-one USB JTAG debugger - offers JTAG + RS232 (full modem signals supported) port + power supply all in one compact device
-
Fast speed USB 2.0 JTAG dongle interface, can be used with all ARM devices for programming and debugging.
-
Uses ARM's standard 2x10 pin JTAG connector
-
Supports ARM targets working in voltage range 2.0 – 5.0 V DC
-
Software supported by OpenOCD (open source) debugger
-
Adds virtual RS232 port to your computer with all modem signals like: DTR, DSR, DCD, RTS, CTS, Rx, Tx
-
Can be used as power supply to your target board with three jumper-selectable power supplies: 5V 9V and 12VDC, USB source current is limited with resetable fuse at 300mA, at the differentoutput voltage the maximum current is different: 5V/200mA, 9V/100mA, 12V/70mA, note that this also depend on your USB host current capabilities, if other USB devices are attached to your computer or if the laptop is running on batteries these figures may be different and depend on your computer USB host.
-
Downloadable Windows installer for full featured and open source tools as alternative to the commercial ARM development packages: GCC C compiler, openOCD debugger and Eclipse IDE.
-
Works with IAR EW-ARM 5.50 or newer
-
Dimensions 50x40 mm (2x1.6") + 20 cm (8") JTAG cable + 30 cm (12") power supply cable
|
| |
 |

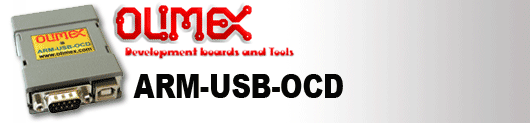

OLIMEX - ARM-USB-OCD
3-IN-1 fast USB ARM JTAG, USB-to-RS232 virtual port and power supply 5-9-12VDC device (supported by OpenOCD open source ARM debugger)
