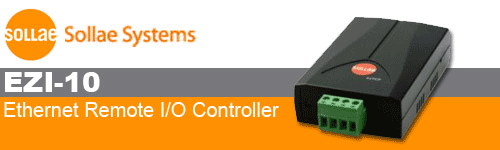

Sollae EZI-10 - Ethernet Remote I/O Controller




The EZI-10 is a remote I/O Controller which is controlled over an Ethernet link. It can be used to monitor a digital Input and control a digital Output over a nework or over the Internet. It supports Modbus/TCP, HTTP and simple macros for stand-alone operation so that you can use it for various applications.



Features

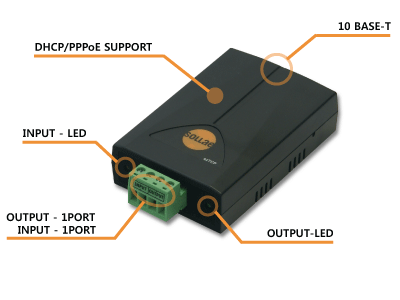

Functional diagram

Product highlights
  • Remote I/O controller
  • 10Base-T Ethernet
  • 1 x Digital Input Ports (photo-coupler interface)
  • 1 x Digital Output Ports (relay interface)
  • Stored Web server for simple management
  • Modbus/TCP
  • DHCP and PPPoE
  • Access Restriction : IP address filtering, Password
  • Firmware upgrade through Network
  • Powerful configuration software for Windows OS (ezConfig)
  • Free Modbus/TCP program for management of I/O devices (ModMap)
  • Environmentally-friendly RoHS compliant

Detailed Specification



Ordering Information...




Sollae EZI-10 - Ethernet Remote I/O Controller EZI-10 - Remote I/O Controller
The EZI-10 is a remote I/O Controller which is controlled over an Ethernet link. It can be used to monitor a digital Input and control a digital Output over a nework or over the Internet. It supports Modbus/TCP, HTTP and simple macros for stand-alone operation so that you can use it for various applications.
Manufacturer:  Sollae Systems
Order Code:  SOL-EZI-10
Quantity Price (GBP) [Excl. VAT]
1 - 9
52.95
10 and above
50.30

Availability:
0 in stock
7 days delivery
Product Information
Product:  Sollae EZI-10 - Ethernet Remote I/O Controller EZI-10 - Remote I/O Controller
Manufacturer:  Sollae Systems
Order Code:  SOL-EZI-10
Availability:  0 in stock
7 days delivery
Price:   52.95 (GBP)
 [Excl. VAT]
