Olimex - AVR-HX128A1 ATxMega128A1 HEADER BOARD WITH JTAG




Olimex  AVR-HX128A1 IS A LOW COST HEADER DEVELOPMENT PROTOTYPE BOARD FOR ATxMEGA128A1 MICROCONTROLLER



Features



Features
  • ATxMega128A1-AU microcontroller with 128 KB Flash, 8KB RAM, 4 KB EEPROM, 32Mhz clock
  • JTAG 5x2 pin connector for in-circuit debugging with ATJTAGICE-MK2
  • 8 MHz scillator circuit
  • 32768 Hz oscillator circuit
  • Reset button and circuit
  • User button
  • user LED
  • +3.3V voltage regulator
  • power supply filtering capacitors
  • extension pin headers for each uC pin
  • FR-4, 1.5 mm (0,062"), red soldermask, white silkscreen component print
  • dimensions 48x48 mm (1.9x1.9")

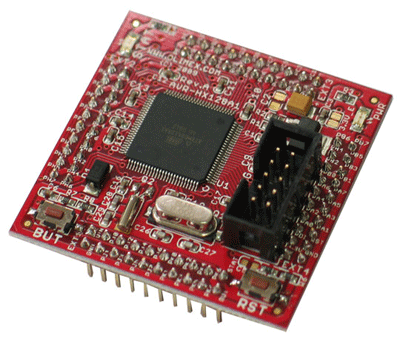

Product picture - Top

Product picture - Bottom




Device Support (by family)



This product supports devices from the families listed below:

Atmel Corporation:
  • XMEGA AVR : Atmel XMEGA AVR - FLASH Microcontroller Family



Device Support (by manufacturer / programming algorithm)




Atmel Corporation

Unspecified algorithm:
XMEGA AVR:
ATxmega128A1



Ordering Information...




Olimex - AVR-HX128A1 ATxMega128A1 HEADER BOARD WITH JTAG
Olimex AVR-HX128A1 IS A LOW COST HEADER DEVELOPMENT PROTOTYPE BOARD FOR ATxMEGA128A1 MICROCONTROLLER
Manufacturer:  Olimex
Order Code:  OLI-AVRHX128A1
Quantity Price (GBP) [Excl. VAT]
1 - 4
23.18
5 and above
22.02

Availability:
1 in stock
Product Information
Product:  Olimex - AVR-HX128A1 ATxMega128A1 HEADER BOARD WITH JTAG
Manufacturer:  Olimex
Order Code:  OLI-AVRHX128A1
Availability:  1 in stock
Price:   23.18 (GBP)
 [Excl. VAT]
