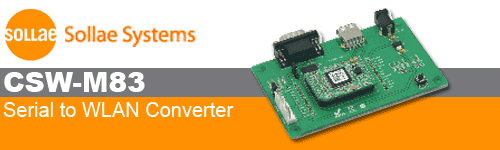

Sollae CSW-M83 - Serial to WLAN Converter OVERVIEW




The CSW-M83 is a wireless LAN converter for serial devices.



Features



Features
  • 3.3V logic level UART to Wireless LAN Converter
  • IEEE 802.11 b/g/n
  • Infrastructure and Ad-hoc network
  • A Ralink RT3070 USB Wireless LAN dongle required
  • 1 x UART (up to 230,400bps)
  • WLAN Security protocol : WEP, WPA-PSK(TKIP), WPA2-PSK(AES)
  • Access Restriction : IP and MAC address filtering, Password
  • Flexible configuration and network communication by 'AT Commands' (patent)
  • 4 Communication modes (TCP server, TCP client, AT Command and UDP)
  • Variety of monitoring status (ezManager, Telnet)
  • DHCP and PPPoE
  • DNS (easy access using domain name)
  • DDNS (dynamic IP address management by domain name)
  • IP Change Notification for dynamic IP address management (TCP, UDP and DDNS)
  • Telnet COM Port Control Option (RFC 2217)
  • Firmware upgrade through Serial
  • Powerful management software for Windows OS (ezManager)
  • Virtual COM Port Redirector for Windows OS (ezVSP)
  • Environmentally-friendly RoHS compliant



Product Versions

Sollae CSW-M83 - Serial to WLAN Converter
The CSW-M83 is a wireless LAN converter for serial devices
Order Code:  SOL-CSW-M83
Quantity Price (GBP) [Excl. VAT]
1 - 9
39.00
10 and above
37.05

Availability:
0 in stock
7 days delivery


Downloads
Download View Downloads for this Product


Product News View All
15 March 2008:
Equinox distributors for Sollae Systems >>
