ARM 10-way ISP Cable for Epsilon5, FS2003 & FS2009 programmers





This cable allows an Equinox Epsilon5, FS2003, FS2009 or FS2009USB portable ISP programmer to connect to any ARM microcontroller based Target System which features a 10-way 'ARM JTAG Debug Connector'. One end of the cable plugs into the programmer and the other end plugs into the IDC connector on the Target System. A user-selectable jumper link allows the programmer to power the Target System at 3.3V from the programmer if required.

This cable is included in the 'ARM Library Upgrades' for the relevant programmer. It can also be purchased separately.

Please note:
A 'License Upgrade' to support 'ARM microcontroller devices' is required in addition to this cable.




Features



Features
  • Connects an Equinox programmer to the 'ARM JTAG Debug Port' on any ARM microcontroller Target Board.
  • Compatible with the Equinox Epsilon5, FS2003, FS2009 and FS2009USB programmers
  • One end plugs into the programmer
  • The other end plugs into the mating 10-way IDC 'ARM Debug' connector socket on the ARM Target System.
  • On-board regulator to allow programmer to power the Target System at +3.3V.
  • Programmer can also power from the Target System at 3.3V
  • Pull-up resistors on JTAG pins

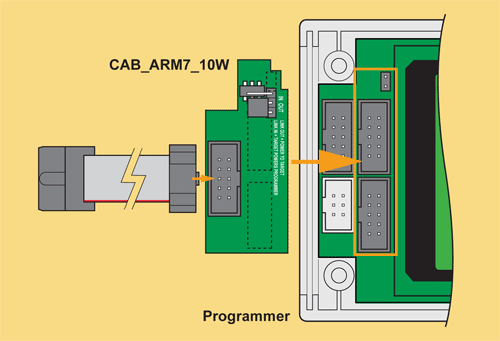

Picture of cable plugging into FS2009 programmer

ISP Header Pinout

The table below details the pin-out connections of this header



Pin No

Pin Name

Programmer Input/Output

Description

1

PROG_VCC

I

Target VCC

This pin should be connected to the Target System Vcc. This voltage could be used to power the programmer depending on the settings of the power switch/jumper on the programmer.

2

PROG_TMS

O

JTAG TMS – Test Mode Select pin

Mode Select Signal from programmer to Target Device JTAG port

3

PROG_GND

P

Ground Connection

Common ground connection between programmer and Target System

4

PROG_TCK

O

JTAG TCK – Test Clock Signal pin

Clock signal from programmer to Target Device JTAG port

5

PROG_GND

P

Ground Connection

Common ground connection between programmer and Target System

6

PROG_TDO

O

JTAG TDO – Test Data Output pin

JTAG data output from Target device JTAG port to programmer. Typically connected to TDO pin on AT91SAM7 device

7

RTCK

N/C

Input Return Test Clock signal from Target System

This signal is not used by Equinox programmers.

8

PROG_TDI

O

JTAG TDI – Test Data Input pin

Data signal from programmer to Target Device JTAG port

9

PROG_GND

P

Ground Connection

Common ground connection between programmer and Target System

10

PROG_RESET

O

Microcontroller RESET control signal

This pin connects to the main RESET pin of the Target AT91SAM7 microcontroller or to the AT91SAM7 RESET circuit on the Target System



Key

O - Output from programmer to Target Device

I - Input to programmer from Target Device

P - Passive eg. GROUND and power rails

N/C - Not connected

Standalone mode demonstration

Programmer compatibility

This cable is compatible with the following Equinox ISP Programmers:

  • Epsilon5 - Portable ISP Development Programmer
  • FS2003  - Portable ISP Production Programmer
  • FS2009 - Portable ISP Production Programmer
  • FS2009USB - Portable ISP Production Programmer

Please note:
A 'License Upgrade' to support 'ARM microcontroller devices' is required in addition to this cable.

Specification
  • ISP Connector Cable supporting most ARM FLASH microcontrollers
  • Features a 10-way 2.54 mm pitch female in-line IDC plug suitable for plugging into the mating male IDC connector on ARM based Target System.
  • Compatible with Equinox Epsilon5, FS2003, FS2009 and FS2009USB ISP programmers
  • Jumper to allow programmer to power the Target System at +3.3V.
  • Pull-up resistors on JTAG pins
  • Cable length: 19cm

AT91SAM7 ISP Connections

Documenation

Please see the following Application Note for full details of how to use this cable:

  • AN122 - In-System Programming (ISP) of the Atmel AT91SAM7 FLASH Microcontroller Families using the JTAG Programming Interface

You can download this Application Note by clicking the [Downloads] link.




Ordering Information...




ARM 10-way ISP Cable for Epsilon5, FS2003 & FS2009 programmers
This cable allows an Equinox Epsilon5, FS2003, FS2009 or FS2009USB programmer to connect to any ARM Target System which features a 10-way 'ARM JTAG Debug Connector'. the relevant 'ARM Device Library' must also be purchased.
Manufacturer:  Equinox Technologies
Order Code:  ASSY-ARM-10W
Quantity Price (GBP) [Excl. VAT]
1 and above
49.95

Availability:
6 in stock


Product Information
Product:  ARM 10-way ISP Cable for Epsilon5, FS2003 & FS2009 programmers
Manufacturer:  Equinox Technologies
Order Code:  ASSY-ARM-10W
Availability:  6 in stock
Price:   49.95 (GBP)
 [Excl. VAT]
