ISPnano IOMOD1




The ‘IOMOD1’ module is designed to allow any ISPnano programmer to interface to a Target system (DUT). The module features the standard ISPnano 16-way IDC 'Target ISP Port' connector plus a wire-wrap version of the same port. All power signals are switched via relays making this IMOD module suitable for use on the ISPnano Series 4 ATE and ISPnano-MUX programmers only.



Features



Main Features
Product Photo
Interfacing to an ISPnano Series 4 programmer
Interfacing to the ISPnano-MUX programmer range

Main Features

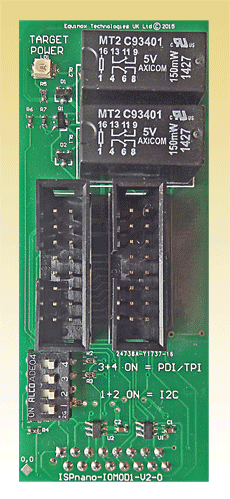

  • Standard ISPnano 16-way IDC 'Target ISP Port' connector (not switched via relays)
  • Wire-wrap version of ISPnano 16-way IDC 'Target ISP Port' connector (not switched via relays)
  • User-configurable pull-up resistors for I2C and Atmel XMEGA PDI / ATtiny TPI programming algorithms
  • 'Target Power' status LED (TVCC signal)
  • Relay isolation of all power signals (TVCC, TVPP and EXT-VCC supplies)

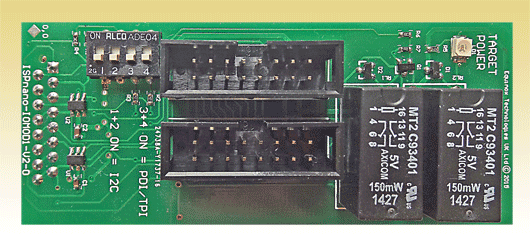

Product Photo
