ISPnano IOMOD2- I/O Connector Module with Relay isolation




The EQ-IOMOD-2 is a plug-in 'I/O Connector Module' for the ISPnano Series 4 and ISPnano-MUX programmers. This module features relay isolation of all power and programming signals. It is also possible to route external Test Equipment e.g. an ATE or ICT to the Device Under Test (DUT) via the 'ATE Port' on the module.



Features



Main Features
Product photo
Interfacing to ISPnano Series 4 programmer
Interfacing to ISPnano-MUX programmer range
Illustration showing pin-routing from ATE port to DUT
Illustration showing pin-routing from programmer to DUT

Main Features
  • I/O Connector Module designed to interface an ISPnano programmer to a Device Under Test (DUT)
  • All programming and power signals are isolated from the DUT via relays when the programmer is not in programming mode.
  • External Test Equipment can be routed to the DUT by using the 'ATE Port' on the module

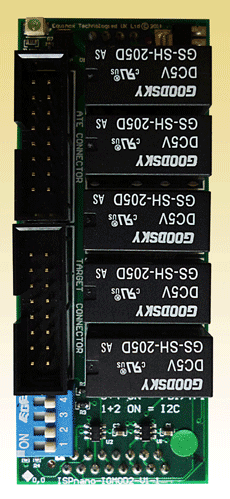

Product photo

Interfacing to ISPnano Series 4 programmer

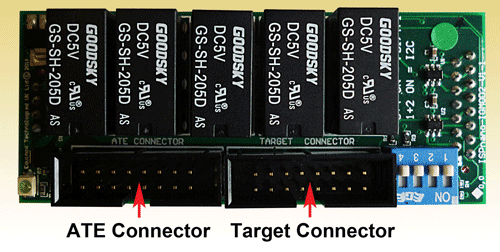

The IO-MOD2 module simply plugs into the programmer as shown above...

Interfacing to ISPnano-MUX programmer range

The picture above shows how 2 x IO-MOD2 modules are fitted to an ISPnano-MUX2 programmer.

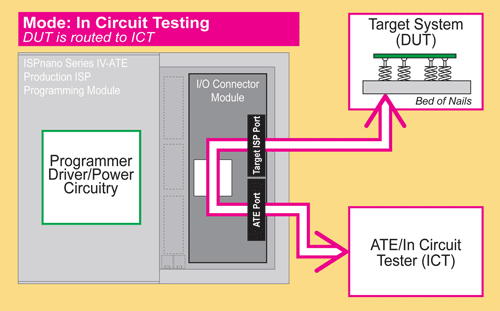

Illustration showing pin-routing from ATE port to DUT

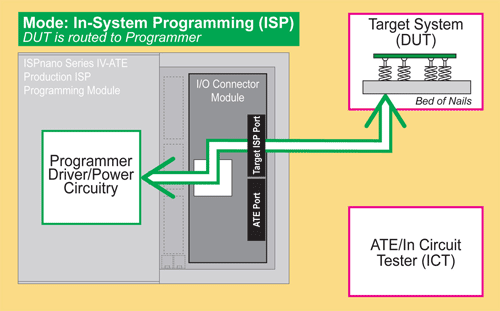

Illustration showing pin-routing from programmer to DUT




Ordering Information...




ISPnano IOMOD2- I/O Connector Module with Relay isolation
The EQ-IOMOD2 is a plug-in 'I/O Connector Module' for the ISPnano Series 4 and ISPnano-MUX programmers. This module features relay isolation of all power and programming signals. It is also possible to route external Test Equipment e.g. an ATE or ICT to the Device Under Test (DUT) via the 'ATE Port' on the module.
Manufacturer:  Equinox Technologies
Order Code:  EQ-IOMOD2
Quantity Price (GBP) [Excl. VAT]
1 and above
48.00

Availability:
28 in stock
Product Information
Product:  ISPnano IOMOD2- I/O Connector Module with Relay isolation
Manufacturer:  Equinox Technologies
Order Code:  EQ-IOMOD2
Availability:  28 in stock
Price:   48.00 (GBP)
 [Excl. VAT]
