Sollae CSW-M85 - Serial to WLAN Converter - Overview





The Sollae CSW-M85 module is a wireless LAN converter for serial devices. The modular approach allows wireless network connectivity to be added to a product without having to design a custom WLAN solution. This approach reduces development cost and risk and can also shorten the development time. Because the CSW-M85 embeds not only a chip antenna but also a socket for an external antenna, it can be used for various wireless network environments.




Features



Main features
  • IPv6 (IPv4/IPv6 dual stack, Autoconfiguration) *
  • Soft AP (setting and connection through a smartphone or laptop without an AP available) *
  • Wireless Received Signal Strength Indication (RSSI) Mode *
  • WPA Enterprise (EAP-TLS, EAP-TTLS, PEAP) *
  • IEEE 802.11 b/g
  • Infrastructure and Ad-hoc network

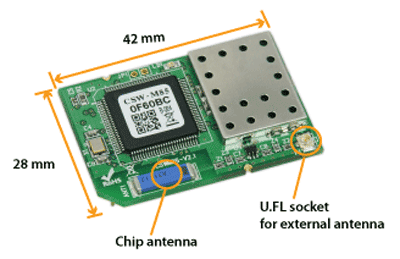

  • Embedded chip antenna, An U.FL socket for external antennas
  • WLAN Security protocol : WEP, WPA-PSK(TKIP), WPA2-PSK(AES)
  • 1 x UART (up to 230,400bps)

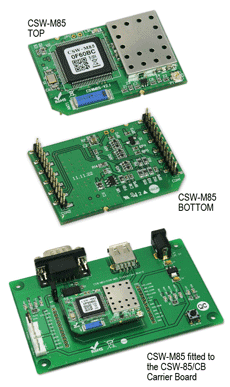

CSW-M85 - Product photo

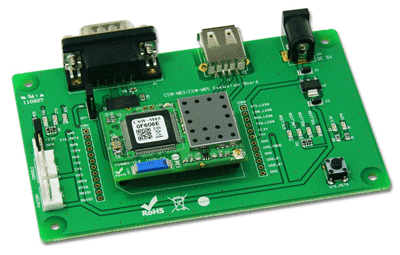

CSW-M85 - Carrier Board



Product Versions

Sollae CSW-M85 - Serial to WLAN Converter (module only)
The CSW-M85 is a wireless LAN converter for serial devices (module only).
Manufacturer:  Sollae Systems
Order Code:  SOL-CSW-M85
Quantity Price (GBP) [Excl. VAT]
1 - 9
40.81
10 - 49
38.77
50 - 99
36.73
100 and above
34.69

Availability:
1 in stock
Sollae CSW-M85/CB - Serial to WLAN Converter (Carrier Board)
The CSW-M85/CB is the carrier board for the CDW-M85 module.
Manufacturer:  Sollae Systems
Order Code:  SOL-CSW-M85/CB
Quantity Price (GBP) [Excl. VAT]
1 - 9
45.20
10 and above
42.94

Availability:
1 in stock


Downloads
Download View Downloads for this Product


Product News View All
15 March 2008:
Equinox distributors for Sollae Systems >>


Associated Products View All
Communications Convertors
SOLLAE - Antenna Cable (150mm) >>
SOLLAE - TB-2400/5000 (2dBi) Basic Antenna >>
