ISPnano IOMOD4 Connector Module - SPI/JTAG Programming Interface




This is a plug-in I/O connector module for the ISPnano Series 3 or Series 4 programmer. It provides a direct interface to the "Serial Clock Buffer Module" which is used when programming Atmel XMEGA devices.



Features



Main Features

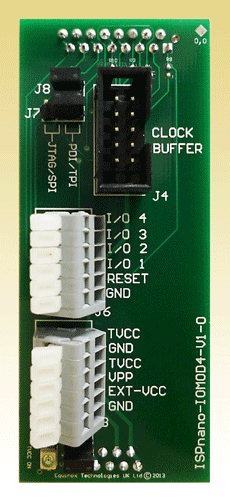

I/O MOD4 connected to the Clock Buffer Module

Main Features
  • Supports direct connection of a remote 'Clock Buffer Module' via a 10-way IDC plug
  • Supports buffering of SPI, JTAG, XMEGA PDI and ATtiny TPI 'Serial Clock' signals
  • The  remote 'Clock Buffer Module' can be connected via any suitable length of ribbon cable to the 10-way IDC plug.
  • User configurable clock signal routing - a simple jumper selection allows either the 'SPI - SCK', 'JTAG - TCK' or 'XMEGA PDI CLK'  serial clock signal to be routed from the programmer to the 'Buffered clock input' on the remote 'Clock Buffer Module'.
  • Quick-connect connector for connecting programmer I/O pins 1..4 and RESET
  • Quick-connect connector for connecting power signals TVCC, TVPP, E-VCC
  • 'Target Power' LED - illuminates when the programmer switches the TVCC supply on

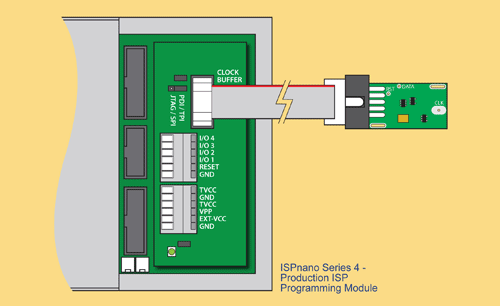

I/O MOD4 connected to the Clock Buffer Module




Ordering Information...




ISPnano IOMOD4 Connector Module - SPI/JTAG Programming Interface
This is a plug-in I/O connector module for the ISPnano Series 3 or Series 4 programmer. It provides a direct interface to the "Serial Clock Buffer Module" which is used when programming Atmel XMEGA devices.
Manufacturer:  Equinox Technologies
Order Code:  EQ-IOMOD4
Quantity Price (GBP) [Excl. VAT]
1 and above
48.00

Availability:
0 in stock
7 days delivery
Product Information
Product:  ISPnano IOMOD4 Connector Module - SPI/JTAG Programming Interface
Manufacturer:  Equinox Technologies
Order Code:  EQ-IOMOD4
Availability:  0 in stock
7 days delivery
Price:   48.00 (GBP)
 [Excl. VAT]
