ISPnano IOMOD5 Connector Module |
|
|
|
|
|
| |
The ‘IOMOD5’ module is designed to allow a remote 'Clock Buffer Module' to be connected to an 'ISPnano Series 4' or 'ISPnano-MUX' programmer. The module features a 10-way 'Clock Buffer' IDC connector which is used to directly connect to a remote 'Clock Buffer Module' via any length of 10-way ribbon cable
|
| |
|
|
|
 |

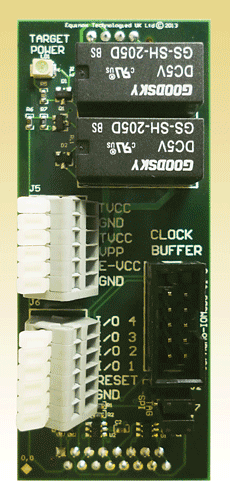

Main Features |
|
- Supports direct connection of a remote 'Clock Buffer Module' via a 10-way IDC plug
-
Supports buffering of SPI, JTAG, XMEGA PDI and ATtiny TPI 'Serial Clock' signals
-
The remote 'Clock Buffer Module' can be connected via any suitable length of ribbon cable to the 10-way IDC plug.
-
User configurable clock signal routing - a simple jumper selection allows either the 'SPI - SCK', 'JTAG - TCK' or 'XMEGA PDI CLK' serial clock signal to be routed from the programmer to the 'Buffered clock input' on the remote 'Clock Buffer Module'.
-
Power signals TVCC, TVPP, EVCC are switched via relays
-
Quick-connect connector for connecting programmer I/O pins 1..4 and RESET
-
Quick-connect connector for connecting power signals TVCC, TVPP, E-VCC
-
'Target Power' LED - illuminates when the programmer switches the TVCC supply on
|
|

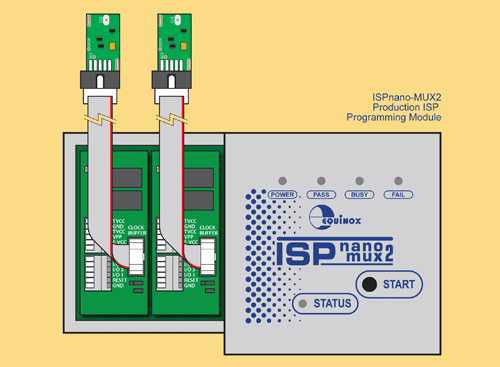

I/O MOD5 connected to the Clock Buffer Module |
|
|
|
| |
 |
ISPnano IOMOD5 Connector Module
The ‘IOMOD5’ module is designed to allow a remote 'Clock Buffer Module' to be connected to an 'ISPnano Series 4' or 'ISPnano-MUX' programmer.
| Quantity |
Price (GBP) [Excl. VAT] |
| 1 and above |
|
|
|
|
|  |
|
View Downloads for this Product
