ISPnano IOMOD6 Connector Module





The ‘IOMOD6’ module is designed to allow simple interfacing to any 'Target boards' or 'PCBAs' which feature standard ISP connectors from Atmel, Equinox or Sigma Designs. This module features the standard Atmel AVR 6-way SPI and 10-way JTAG IDC connectors making it ideal for quick and simple interfacing to most AVR based 'Target boards' .




Features



Main Features

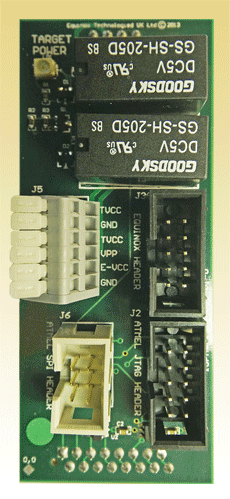

Product Picture

Main Features
  • Standard Atmel AVR 6-way 0.1" IDC  SPI (ISP) connector
  • Standard Atmel AVR 10-way 0.1" IDC JTAG connector
  • Standard Equinox Generic 10-way 0.1" SPI / UART IDC connector
  • Power signals TVCC, TVPP, EVCC are switched via relays
  • Quick-connect connector for connecting power signals TVCC, TVPP, E-VCC
  • 'Target Power' LED - illuminates when the programmer switches the TVCC supply on
  • ESD and over-voltage protection on programmer I/O pins IO1...IO4

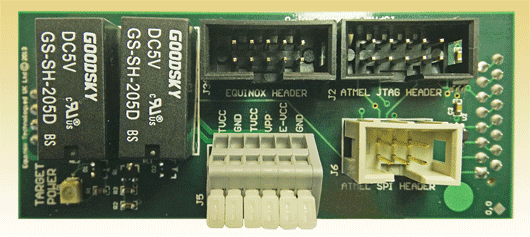

Product Picture




Ordering Information...




ISPnano IOMOD6 Connector Module
The ‘IOMOD6’ module is designed to allow simple interfacing to any 'Target boards' or 'PCBAs' which feature standard ISP connectors from Atmel, Equinox or Sigma Designs.
Manufacturer:  Equinox Technologies
Order Code:  EQ-IOMOD6
Quantity Price (GBP) [Excl. VAT]
1 and above
48.00

Availability:
28 in stock
Product Information
Product:  ISPnano IOMOD6 Connector Module
Manufacturer:  Equinox Technologies
Order Code:  EQ-IOMOD6
Availability:  28 in stock
Price:   48.00 (GBP)
