ISPnano IOMOD8 Connector Module - ARM 10-way 0.05" connector |
|
|
|
|
|
|
This Connector Module for the ISPnano Series 4 and ISPnano-MUX programmers features a single 0.05" pitch 10-way ARM connector. |
|
|
|
 |
Main Features |
|
- Features 10-way 0.05" ARM connector
-
Configuration jumper J2 to select either 'SWD' or 'JTAG' interface
-
Power signals TVCC, TVPP, EVCC are switched via relays
-
Quick-connect connector for connecting power signals TVCC, TVPP, E-VCC
-
'Target Power' LED - illuminates when the programmer switches the TVCC supply on
|
 |

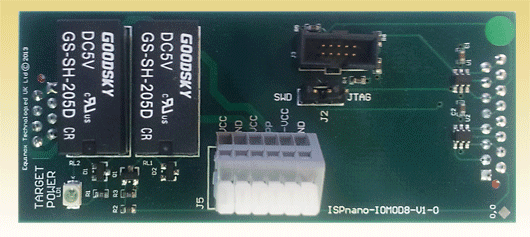

Main Product Picture |
|

|
|
|  |
|
