ISPnano IOMOD7 Connector Module




ISPnano IOMOD7 Connector Module - features Equinox 10-way IDC, Atmel 10-way IDC JTAG and Atmel 6-way IDC SPI connection headers.



Features

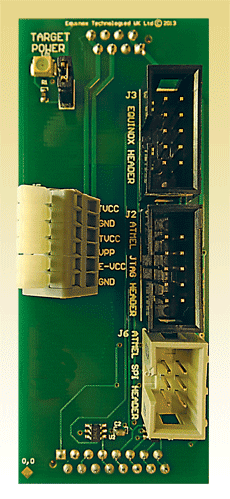

Main Features
Main Product Picture

Main Features
  • Standard Atmel AVR 6-way 0.1" IDC  SPI (ISP) connector
  • Standard Atmel AVR 10-way 0.1" IDC JTAG connector
  • Standard Equinox Generic 10-way 0.1" SPI / UART IDC connector
  • Quick-connect connector for connecting power signals TVCC, TVPP, E-VCC
  • 'Target Power' LED - illuminates when the programmer switches the TVCC supply on
  • ESD and over-voltage protection on programmer I/O pins IO1...IO4

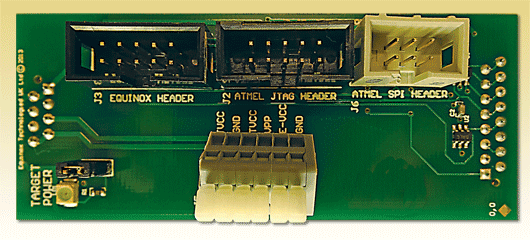

Main Product Picture




Ordering Information...




ISPnano IOMOD7 Connector Module
ISPnano IOMOD7 Connector Module - features Equinox 10-way IDC, Atmel 10-way IDC JTAG and Atmel 6-way IDC SPI connection headers.
Manufacturer:  Equinox Technologies
Order Code:  EQ-IOMOD7
Quantity Price (GBP) [Excl. VAT]
1 and above
48.00

Availability:
26 in stock
Product Information
Product:  ISPnano IOMOD7 Connector Module
Manufacturer:  Equinox Technologies
Order Code:  EQ-IOMOD7
Availability:  26 in stock
Price:   48.00 (GBP)
 [Excl. VAT]


Downloads
Download View Downloads for this Product
