ISPnano IOMOD9 Connector Module - ARM 20-way 0.1" IDC connector |
|
|
|
|
|
| |
| This Connector Module for the ISPnano Series 4 and ISPnano-MUX programmers features a single 0.1" pitch 20-way IDC ARM connector. It is suitable for interfacing with any ARM target board which features the standard 20-way IDC ARM connector. |
| |
|
|
|
 |

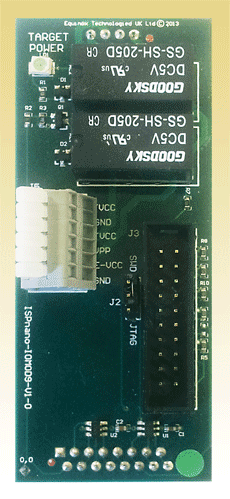

Main Features |
|
- Features 20-way 0.1" generic ARM debug header / connector
-
Configuration jumper J2 to select either 'SWD' or 'JTAG' interface
-
Power signals TVCC, TVPP, EVCC are switched via relays
-
Quick-connect connector for connecting power signals TVCC, TVPP, E-VCC
-
'Target Power' LED - illuminates when the programmer switches the TVCC supply on
|
|

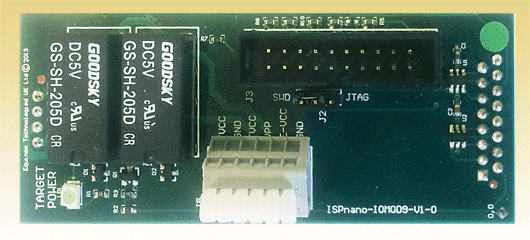

Main Product Picture |
|
|
|
| |
 |
ISPnano IOMOD9 Connector Module - ARM 20-way 0.1" IDC connector
This Connector Module for the ISPnano Series 4 and ISPnano-MUX programmers features a single 0.1" pitch 20-way IDC ARM connector. It is suitable for interfacing with any ARM target board which features the standard 20-way IDC ARM connector.
| Quantity |
Price (GBP) [Excl. VAT] |
| 1 and above |
|
|
|
|
|  |
|
View Downloads for this Product
