ISPQUAD - Portable In-System (ISP) Programmer





The ISPquad is a portable ISP programmer designed for field-service and production In-System Programming (ISP) applications. The programmer is capable of operating in ‘Standalone Mode’ (without PC) allowing an operator to select 1 of 4 pre-loaded ‘Standalone Programming Projects’ using the keypad and ‘Project indicators’. A single ‘Autoprogram’ key is then used to repetitively program the selected project. Portable In-System (ISP) Programmer




Features



Programmer Features

  • Ideal for Field-service or Production programming applications
  • Supports In-system Programming (ISP) of many different programmable microcontrollers, serial EEPROM / FLASH memory devices and other custom devices
  • Supports programming via SPI, JTAG, JTAG chain, SWD, I2C, UART bootloader, XMEGA PDI, ATtiny TPI, ams 1-wire, ams UART interfaces
  • Supports programming of devices between 1.8V and 5.0V
  • Supports ‘Standalone Mode’ operation (no PC required)
  • Supports 4 x ‘Standalone Programming Projects’
  • High-speed USB connection to the PC
  • Programmer can power from PC USB port, target system or external power supply

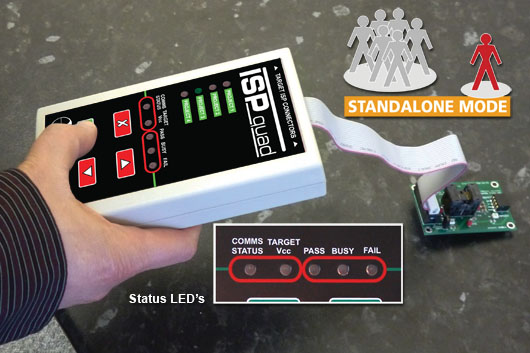

Programmer in use




Device Support (by manufacturer)



This product supports devices from the manufacturers listed below:

Atmel Corporation
Dallas Semiconductor (Maxim)
Exel Semiconductor (Rohm)
Holtek Semiconductor
IC Microsystems
ISSI
Microchip
NXP (Philips)
ON Semiconductors (Catalyst)
Ramtron
Rohm
Seiko Instruments
Sigma Designs
STMicroelectronics
Xicor

The Device Support is different for each version of the ISPjuno programmer. Please see table above.



Please note:
Not all devices may be supported within a family.
Please see the Detailed Device Support List for a list of all devices which the product supports.




Device Support
Device Support List


Downloads
Download View Downloads for this Product
