STM32-H152 - Header board for STM32L152VBT6 low power CORTEX-M3 microcontroller |
|
|
|
|
|
| |
This is a low-cost development board for the new STM32L series of ultra low-power microcontrollers of ST Microelectronics. STM32-H152 covers STM32L152VBT6. This board was carefully designed to low-power handheld operation, with Li-ion battery charges on board and USB. It's perfect to make data loggers. The 32khz crystal allows RTC implementation.
|
| |
|
|
 |
Main Features |
|
- MCU: STM32L152VBT6 ARM 32bit CORTEX M3™ with 128K Bytes Program Flash, 16K Bytes RAM, USB, LCD, I2C, SPI, USART, 32 Mhz clock, 80 GPIO, 1.8-3.6V power supply
-
Standard JTAG connector with ARM 2x10 pin layout for programming/debugging with ARM-JTAG
-
Li-ion battery charger
-
USB connector
-
UEXT connector
-
Wake-up user button
-
RESET button and circuit
-
Two status LED
-
Power supply LED
-
On board voltage regulator 3.3V with up to 800mA current
-
Single power supply: takes power from USB port or extension connector pin
-
8 Mhz crystal oscillator
-
32768Hz crystal and RTC backup battery connector
-
Extension headers for all uC ports
-
PCB: FR-4, 1.5 mm (0,062"), red soldermask, silkscreen component print
-
Dimensions: 70x 50mm (2.75 x 2.0")
-
Distance between the exntension connectors: 38.1 mm (1.5")
|
|

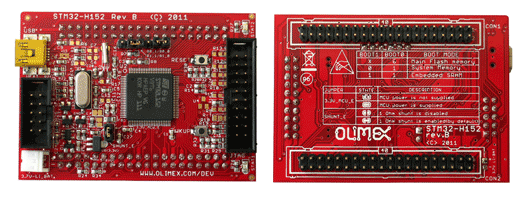

Product Pictures |
|
|
|
| |
|  |
|
