Sollae CSE-M32-E - 2-Port Embedded Serial to Ethernet Module |
|
|
|
|
|
| |
CSE-M32-E is a 2 ports embedded serial to Ethernet module that accomplishes conversion functions (serial to TCP/IP and vice versa) to provide your serial devices with seamless network connectivity. By applying it, therefore, you can remotely control and manage serial device over network without changing existing software. This serial to Ethernet module is equipped with a TCP/IP stack optimized for compact size and multiple UART ports to enable high speed data transmission. Also, CSE-M32-E supports DNS, DDNS, Telnet COM Port Control Option and two UART ports to be extended to RS232/RS422/RS485.
|
| |
|
|
 |
CSE-M32-E Features |
|
- 2-port Embedded Serial to Ethernet Module
-
Compact size : 50mm x 32mm x 9mm
-
Ethernet 10Base-T or 100Base-TX (Auto-Sensing)
-
High speed UART x 2 (3.3V-TTL, up to 1.8Mbps) available for RS232/RS422/RS485 extension (In case of use both COM1 and COM2, the maximum data rate of the UART is limited to 921.6Kbps)
-
Access Restriction : IP and MAC address filtering, Password
-
Security Protocols : SSL3.0/TLS1.0, SSH2.0
-
Flexible configuration and network communication by 'AT Commands' (patent)
-
4 Communication modes (TCP server, TCP client, AT Command and UDP)
-
Variety of monitoring status(debugging mode, ezManager, Telnet)
-
DHCP and PPPoE
-
DNS (easy access using domain name)
-
DDNS (dynamic IP address management by domain name)
-
IP Change Notification for dynamic IP address management (TCP, UDP and DDNS)
-
Telnet COM Port Control Option (RFC 2217)
-
Firmware upgrade through Network
-
Powerful management software for Windows OS (ezManager)
-
Virtual COM Port Redirector for Windows OS (ezVSP)
-
Environmentally-friendly RoHS compliant
|
|

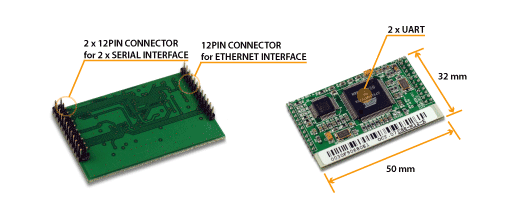

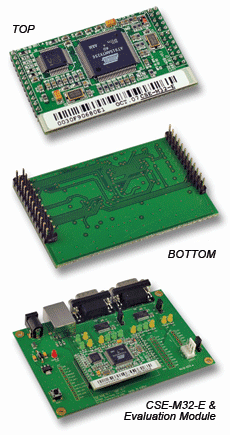

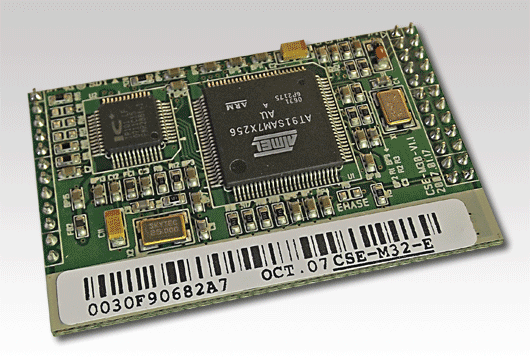

CSE-M32-E Product Pictures |
|
|
|
|
CSE-M32-E Applications |
|
- Secure Communication through the Internet
-
Extending distance between two devices through the LAN
-
Central Remote Patient Monitoring System
-
Power Management System
-
Mobile Terminal Testing Equipment
-
POS System
-
Bank Automation System
|
| |
 |
Sollae CSE-M32-E - 2-Port Embedded Serial to Ethernet Module
CSE-M32-E is a 2 ports embedded serial to Ethernet module that accomplishes conversion functions (serial to TCP/IP and vice versa) to provide your serial devices with seamless network connectivity.
| Quantity |
Price (GBP) [Excl. VAT] |
| 1 and above |
24.30
|
|
|
|
|  |
|
View Downloads for this Product
