Sollae CSC-H64 - 4-Port Serial to Ethernet/WLAN Converter





CSC-H64 is a serial to Ethernet/WLAN converter that enables your serial devices to carry robust networking capabilities. This serial to Ethernet/WLAN converter offers 4 serial ports interfaced with RS232/RS422/RS485 and a frame delimiter for packet fragmentation.

CSC-H64 comes preloaded with Soft AP so it can simply be linked to any devices with WLAN by operating as an AP. It eases network construction with mobile devices such as smartphones, tablet PCs and laptops where an AP is unavailable.

Ensuring reliable operation with industrial temperature range of -40℃~+85℃ -without a USB WLAN adapter-, along with an overvoltage, reverse voltage and overcurrent protection circuit, makes this Serial to Ethernet/WLAN converter suitable for harsh industrial environments.

CSC-H64 can be used in diverse applications such as Remote Console Monitoring, Automatic Fare Collection System, etc.



Features



CSC-H64 Features
  • RS232/RS422/RS485 to Ethernet or Wireless LAN Converter
  • 4 x RS232/RS422/RS485 (D-SUB 9pin Male, up to 230.4Kbps)
  • Ethernet 10Base-T or 100Base-TX (Auto-Sensing)
  • IEEE802.11b/g : A Ralink RT3070/RT5370 USB Wireless LAN dongle required
  • IPv4 / IPv6 dual stack
  • Stateless / Stateful (DHCPv6) address auto-configuration
  • Infrastructure and Ad-hoc network
  • Soft AP (setting and connection through a smartphone or laptop without an AP available)
  • Security options (Password, WEP, WPA-PSK, WPA2-PSK)
  • WPA Enterprise (EAP-TLS, EAP-TTLS, PEAP)
  • Industrial temperature range, -40℃ ~ +85℃ (without a USB WLAN adapter)
  • Separator settings for packet fragmentation
  • Environmentally-friendly RoHS compliant

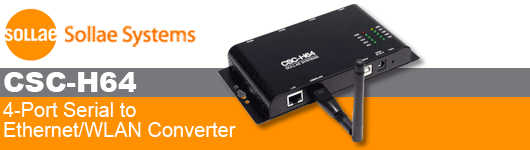

CSC-H64 Product Picture

CSC-H64 Applications
  • Secure Communication through the Internet
  • Extending distance between two devices through the LAN
  • Remote Console Monitoring
  • Automatic Fare Collection System



Ordering Information...




Sollae CSC-H64 - 4-Port Serial to Ethernet/WLAN Converter
CSC-H64 is a serial to Ethernet/WLAN converter that enables your serial devices to carry robust networking capabilities.
Manufacturer:  Sollae Systems
Order Code:  SOL-CSC-H64
Quantity Price (GBP) [Excl. VAT]
1 and above 205.09

Availability:
1 in stock
Product Information
Product:  Sollae CSC-H64 - 4-Port Serial to Ethernet/WLAN Converter
Manufacturer:  Sollae Systems
Order Code:  SOL-CSC-H64
Availability:  1 in stock
Price:   205.09 (GBP)
 [Excl. VAT]
