Product Features |
|
- Supports most popular ARM interface connection methods
-
Supports both JTAG and SWD programming interfaces
-
Independent "clock buffering" of each ARM connector for guaranteed signal integrity
|
|
CAB-ARM-GEN-1 Product Picture |
|
|
|

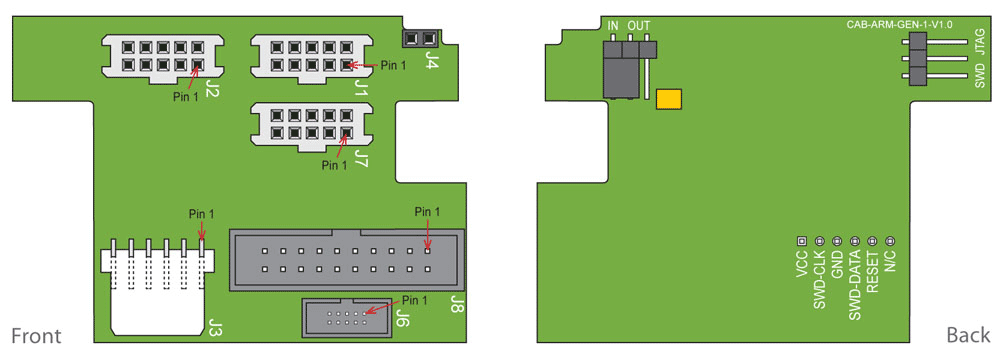

CAB-ARM-GEN-1 Product diagram |
|
To view a larger picture click HERE or on the image above
|
|
ARM programming interfaces / protocols supported |
|
- ARM 4-wire JTAG + RESET (nRST)
-
ARM 2-wire SWD + RESET (nRST)
|
|
Physical programming interfaces / connectors supported |
|

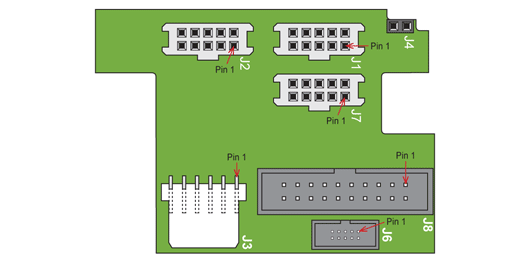

J8 = 20-way 0.1" IDC ARM connector
J6 = 10-way 0.05" IDC ARM connector
J3 = 5/6 pin 0.1" SIL connector (user configurable pin-out)
|
|

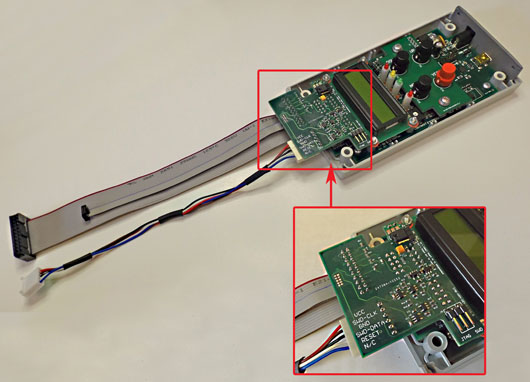

Programmer compatibility |
|
- EPSILON5-MK4(ARM) programmer
-
FS2009USB(ARM) programmer
|
|
