Elprotronic - FlashPro-X Flash Programmer





Flash Programmer for all MCUs supported by Elprotronic Inc. (USB-FPA 6.1).




Features



FlashPro-X Features
  • Can program all MCUs supported by Elprotronic Inc.
  • One programmer can be controlled by FlashPro-430, FlashPro-ARM, FlashPro-CC, and FlashPro-C2000 GUI and DLL software.
  • To control with different GUI simply close current software (i.e. FlashPro-430) and open software for new vendor (i.e. FlashPro-C2000).
  • To control with different DLL the user application can load different DLL files.
  • Can be controlled from one user application using Generic-FPA DLL.  Using API close current instance of one vendor type (i.e. ARM) and open new instance using new vendor type (i.e. C2000).
  • Faster Adapter with built-in Isolation:  FlashPro-X(XS).
  • This product provides the full functionality of the FlashPro-430-STD, FlashPro-ARM, FlashPro-CC-STD, and FlashPro-C2000-STD.

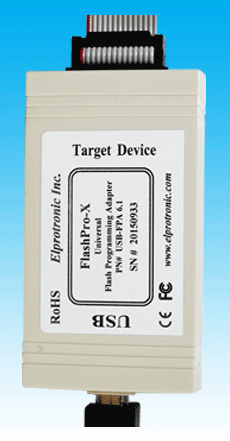

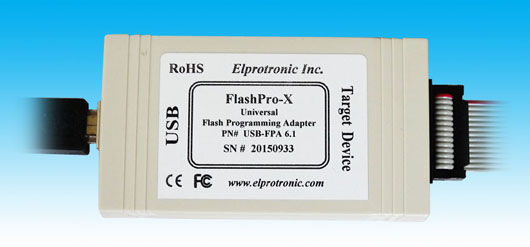

FlashPro-X Product Picture

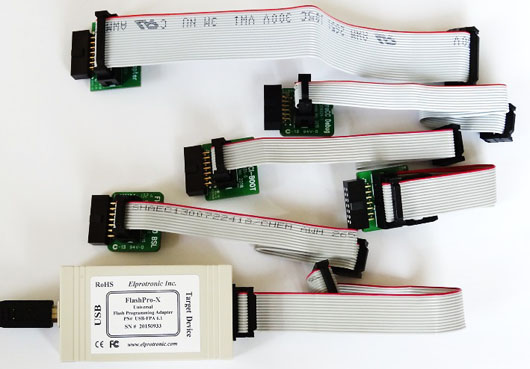

FlashPro-X Kit Picture

FlashPro-X

Package contains:

  • USB-FPA 6.1 programming adapter,
  • USB cable,
  • 14-pin MSP430-JTAG/SBW/BSL ribbon cable,
  • FPA to ARM 14-pin to 20-pin adapter,
  • FPA to C2000-JTAG 14-pin to 14-pin adapter and ribbon cable,
  • FPA to SCI-BOOT 14-pin to 10-pin adapter and ribbon cable,
  • FPA to MSP430-BSL 14-pin to 10-pin adapter and ribbon cable,
  • FPA to CC-Debug 14-pin to 10-pin adapter and ribbon cable,
  • Software for adapter available for download from Product Data.
  • One Year Warranty (see Product Data).




Ordering Information...




Elprotronic - FlashPro-X Flash Programmer

Flash Programmer for all MCUs supported by Elprotronic Inc. (USB-FPA 6.1).


Manufacturer:  Elprotronic Inc.
Order Code:  ELP-FLASHPRO-X
Quantity Price (GBP) [Excl. VAT]
1 and above 468.15

Availability:
0 in stock
7 days delivery
Product Information
Product:  Elprotronic - FlashPro-X Flash Programmer
Manufacturer:  Elprotronic Inc.
Order Code:  ELP-FLASHPRO-X
Availability:  0 in stock
7 days delivery
Price:   468.15 (GBP)
 [Excl. VAT]
