Elprotronic - FlashPro-CC(XS)





Flash Programmer for Texas Instruments Chipcon MCUs (debug port) (XStream 1.0).

Do you need a Socket Board?
Check out: QFP-144, QFP-100, QFP-80, QFP-64, QFP-48, QFP-32, QFN-64, QFN-48, QFN-32.

Do you need Isolation?
Connect this between your PC and programmer: USB 2.0 FS Isolator




Features



Product Features

  • Supports debug interface communication to MCU
  • Programmable JTAG/SWD clock up to 20 MHz, effective throughput up to 1 MBytes/s
  • Built-in galvanic isolation between PC and targets
  • Current measurement from 0.02 to 500 mA
  • Programs Chipcon MCUs from Texas Instruments (See MCU list below)
  • Professionally made and recommended by Texas Instruments as Third Party Tools
  • Up to 64 programmers can be connected over USB to one PC running Windows(TM) XP, 7, 8, 10
  • Easy to use GUI allows the user to configure all necessary options with ease
  • Extensive Memory options customize erase, program, and verify procedures. Selected flash data can be retained across programming sequences
  • For non-ARM based Chipcon MCUs, use FlashPro-CC software
  • For ARM-based Chipcon MCUs use FlashPro-ARM software
  • DLL and Command-Line support
  • C++ and C# code examples provided
  • FCC and CE certified

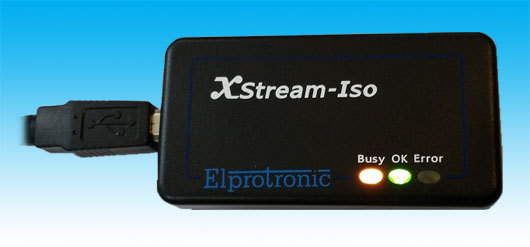

Product Picture




Ordering Information...




Elprotronic - FlashPro-CC(XS)
Flash Programmer for Texas Instruments Chipcon MCUs (debug port) (XStream 1.0).
Manufacturer:  Elprotronic Inc.
Order Code:  ELP-XS-FP-CC
Quantity Price (GBP) [Excl. VAT]
1 and above 337.00

Availability:
0 in stock
7 days delivery
Product Information
Product:  Elprotronic - FlashPro-CC(XS)
Manufacturer:  Elprotronic Inc.
Order Code:  ELP-XS-FP-CC
Availability:  0 in stock
7 days delivery
Price:   337.00 (GBP)
 [Excl. VAT]
