EQ-RBK-ZWAVECALIBOX-3 - Z-Wave Calibration System Rev: 3





The EQ-RBK-ZWAVECALIBOX-3 is a new IOMOD10 kit which includes an IOMOD10F module plus a re-designed 'Carrier Board' which features an integrated 3.3V power supply on the 'Carrier Board'.




Features



Carrier board and IOMOD10F

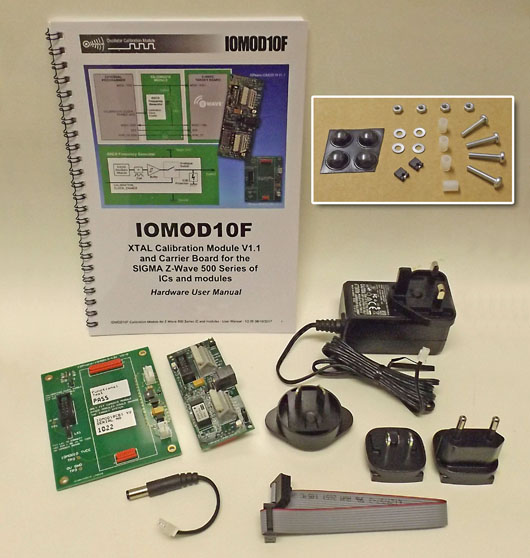

EQ-RBK-ZWAVECALIBOX-3 kit picture

EQ-RBK-ZWAVECALIBOX-3 kit - System Contents

The IOMOD10F module is also available with a 'Carrier Board' which allows it to be connected to an 'external programming system' e.g. Sigma's own development programmer.

Kit order code: EQ-RBK-ZWAVECALIBOX-3

System contents:

Hardware:
- 1 x ISPnano-IOMOD-10-V1.1 (actual 'Calibration Module' hardware)
- 1 x ISPnano-IOMOD10-CB1-V2.0 (actual 'Carrier Board' hardware)
- 1 x 9V Power Supply
- 1 x Set of mains plug adaptors - UK, USA, European, Asia
- 1 x 10-way Ribbon Cable
- 1 x Screw Pack

Contents:
- 4 x 16mm M3 Pozi Pan Head Screws
- 4 x M3 Metal Plain Washers
- 4 x M3 Full Hexagonal Nuts
- 4 x Stick On Rubber Feet, Round
- 4 x Jumper Links
- 4 x 7mm Round Nylon Spacers

Software:
The IOMOD10F module does NOT come with any software.
Please see application note AN145 for details of how to control the IOMOD10F module.

Documentation:
1 1 x IOMOD10F - User Manual (printed)




Ordering Information...




EQ-RBK-ZWAVECALIBOX-3 - Z-Wave Calibration System Rev: 3

Manufacturer:  Equinox Technologies
Order Code:  EQ-RBK-ZWAVECALIBOX-3
Quantity Price (GBP) [Excl. VAT]
1 and above 561.50

Availability:
5 in stock
Product Information
Product:  EQ-RBK-ZWAVECALIBOX-3 - Z-Wave Calibration System Rev: 3
Manufacturer:  Equinox Technologies
Order Code:  EQ-RBK-ZWAVECALIBOX-3
Availability:  5 in stock
Price:   561.50 (GBP)
 [Excl. VAT]


Downloads
Download View Downloads for this Product
