Equinox - Z-Wave 500 Series Evaluation Module (EVAL 1) |
|
|
|
|
|
| |
The Z-Wave-500-EVAL-1 is an evaluation / test module for the Z-Wave 500 Series of ICs.
|
| |
|
|
 |

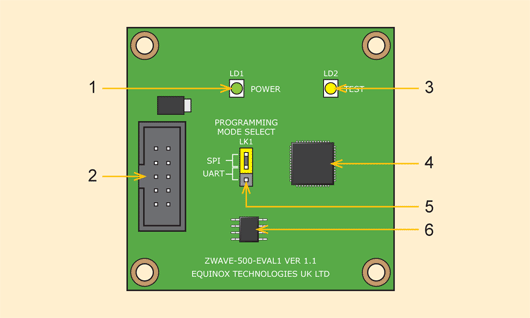

Z-Wave500 EVAL1 Components |
|
|
| Key |
Description |
| 1 |
LED - Power |
| 2 |
10-way IDC Box Header |
| 3 |
LED - Test |
| 4 |
Z-Wave Module |
| 5 |
Programming Mode Select Jumper |
| 6 |
|
|
| |
|  |
|
