Order Information | Features | System Contents


Elprotronic GangPro-ARM(X2S)





Gang Programmer for all ARM MCUs supported by Elprotronic Inc. (XStreamPro-Iso 1.0).

Do you need a Socket Board?
Check out: QFP-144, QFP-100, QFP-80, QFP-64, QFP-48, QFP-32, QFN-64, QFN-48, QFN-32.




Features



GangPro-CC(XS) Features
  • Supports Joint Test Action Group (JTAG, cJTAG), and Serial-Wire-Debug (SWD) communication.
  • Programmable JTAG/SWD clock up to 20 MHz, effective throughput up to 1 MBytes/s.
  • Galvanic isolation between PC and targets.
  • Current measurement from 0.02 to 500 mA.
  • Programs MCUs from Texas Instruments, ST Microelectronics, Silicon Labs, Active-Semi, Freescale, and Atmel  (See MCU list below).
  • Fast MSP430 Flash ProgrammerSix (6) MCUs can be programmed simultaneously using one programmer.
  • Fast MSP430 Flash ProgrammerUp to 64 programmers can be connected over USB to one PC running Windows(TM)  ME, 2000, XP, 7, 8, 10.
  • Fast MSP430 Flash ProgrammerEasy to use GUI allows the user to configure all necessary options with ease.
  • Fast MSP430 Flash ProgrammerExtensive Memory options including select erase, program, verify. Select flash data can be retained across programming sequences.
  • Fast MSP430 Flash ProgrammerSupports full/segment erase, blank check, write and verify of code using one Auto Program function or separate functions for easy customization.
  • Fast MSP430 Flash ProgrammerThis product provides the full functionality of the GangPro-ARM-TI(XS), GangPro-ARM-STM(XS), GangPro-ARM-SL(XS), GangPro-ARM-FS(XS), and GangPro-ARM-AT(XS).
  • Fast MSP430 Flash ProgrammerDLL and Command-Line support.
  • Fast MSP430 Flash ProgrammerC++ and C# code examples provided.
  • Fast MSP430 Flash ProgrammerFCC and CE certified.

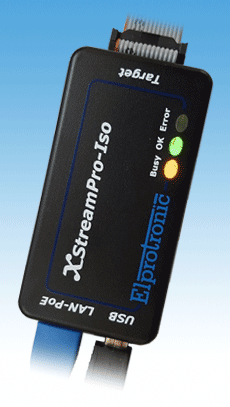

GangPro-CC(XS) Pictures

GangPro-ARM(X2S) Splitter

Package contains:
  • XStream-Iso 1.0 programming adapter
  • USB cable
  • FPA to ARM 14-pin to 20-pin adapter and ribbon cable
  • FPA to CC-Debug 14-pin to 10-pin adapter and ribbon cable
  • GangPro-CC GangSplitter for six (6) MCUs (SOLD SEPARATELY)
  • Software for adapter available for download from Product Data
  • One Year Warranty (see Product Data)




Ordering Information...




Elprotronic GangPro-ARM(X2S)
GangPro-CC(XS) XS-GP-CC Gang Programmer for Texas Instruments Chipcon MCUs (debug port) (XStream-Iso 1.0).
Manufacturer:  Elprotronic Inc.
Order Code:  ELP-X2S-GP-ARM
Quantity Price (GBP) [Excl. VAT]
1 and above 604.50

Availability:
0 in stock
7 days delivery
Product Information
Product:  Elprotronic GangPro-ARM(X2S)
Manufacturer:  Elprotronic Inc.
Order Code:  ELP-X2S-GP-ARM
Availability:  0 in stock
7 days delivery
Price:   604.50 (GBP)
 [Excl. VAT]
