Elprotronic GangPro-CC(XS)





Gang Programmer for Texas Instruments Chipcon MCUs (debug port) (XStream-Iso 1.0).

Do you need a Socket Board?
Check out: QFP-144, QFP-100, QFP-80, QFP-64, QFP-48, QFP-32, QFN-64, QFN-48, QFN-32.




Features



GangPro-CC(XS) Features
  • Supports debug interface communication to MCU.
  • Programmable JTAG/SWD clock up to 20 MHz, effective throughput up to 1 MBytes/s.
  • Built-in galvanic isolation between PC and targets.
  • Current measurement from 0.02 to 200 mA.
  • Programs Chipcon MCUs from Texas Instruments (See MCU list below).
  • Six (6) MCUs can be programmed simultaneously using one programmer.
  • Professionally made and recommended by Texas Instruments as Third Party Tools.
  • Up to 64 programmers can be connected over USB to one PC running Windows(TM)  XP, 7, 8, 10.
  • Easy to use GUI allows the user to configure all necessary options with ease.
  • Extensive Memory options customize erase, program, and verify procedures. Selected flash data can be retained across programming sequences.
  • Gang option for non-ARM based Chipcon MCUs, use GangPro-CC software.
  • Gang option for ARM-based Chipcon MCUs supported, use GangPro-ARM software.
  • DLL and Command-Line support.
  • C++ and C# code examples provided.
  • FCC and CE certified.

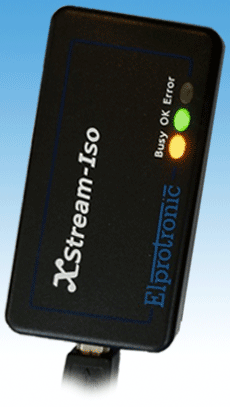

GangPro-CC(XS) Pictures

 GangPro-CC-XS

Package contains:
  • XStream-Iso 1.0 programming adapter
  • USB cable
  • FPA to ARM 14-pin to 20-pin adapter and ribbon cable
  • FPA to CC-Debug 14-pin to 10-pin adapter and ribbon cable
  • GangPro-CC GangSplitter for six (6) MCUs (included)
  • Software for adapter available for download from Product Data
  • One Year Warranty (see Product Data)




Ordering Information...




Elprotronic GangPro-CC(XS)
Gang Programmer for Texas Instruments Chipcon MCUs (debug port) (XStream-Iso 1.0).
Manufacturer:  Elprotronic Inc.
Order Code:  ELP-XS-GP-CC
Quantity Price (GBP) [Excl. VAT]
1 and above 360.00

Availability:
0 in stock
7 days delivery
Product Information
Product:  Elprotronic GangPro-CC(XS)
Manufacturer:  Elprotronic Inc.
Order Code:  ELP-XS-GP-CC
Availability:  0 in stock
7 days delivery
Price:   360.00 (GBP)
 [Excl. VAT]
