Universal AVR - Target Interface Module (TIM)




The AVR-TIM-01-V1-1 is a Univeral AVR Target Interface Module (TIM) designed to support connection to all popular AVR microcontroller target connection systems. It features all the standard IDC header connectors for AVR ISP (SPI), AVR JTAG, AVR PDI (Xmega), AVR TPI (ATtiny), AVR UPDI plus the Equinox ISP standard connector.  The TIM module is compatible with both the ISPjuno and ISPalfa1 portable ISP programmers.



Features



Product picture

Main features
Programming Interfaces supported

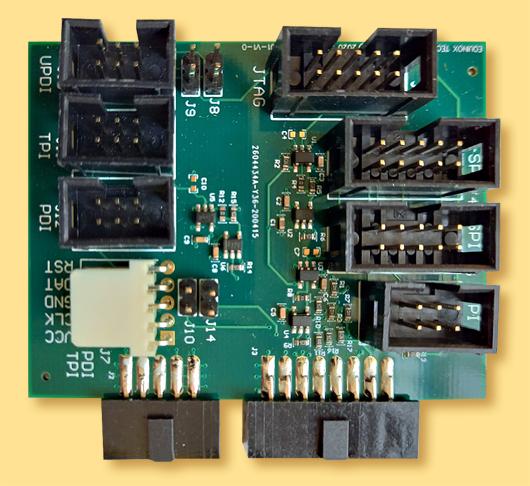

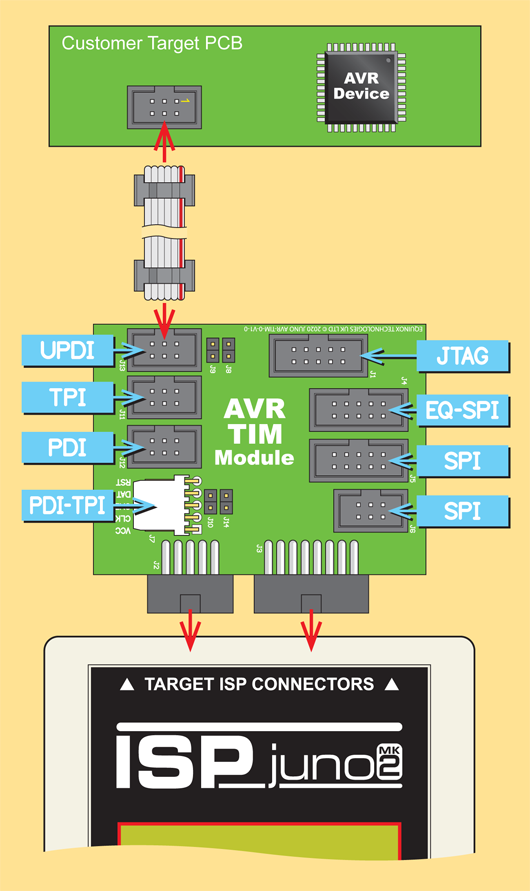

TIM module connected to programmer

Programmer connectors overview

The table below explains the pin-out and function the various ‘ISP connectors’ on the ‘AVR – Target Interface Module (TIM)’.

#

PCB

label

Description

Pin-out

Type

Pitch

Ways

1

-

AVR - Target Interface Module (TIM) PCB

-

-

-

-

2

J1

Atmel AVR – JTAG pin-out

AVR
JTAG

IDC

0.1"

10

3

J4

Equinox - 10-way IDC SPI pin-out (same as AVR ISP)

Equinox
SPI

IDC

0.1”

10

4

J5

Atmel AVR - 10-way IDC SPI pin-out

AVR
SPI
10-way

IDC

0.1”

10

5

J6

Atmel AVR - 6-way IDC SPI pin-out

AVR
SPI
6-way

IDC

0.1"

6

6

J8

Configuration - Jumper link









7

J9

Configuration - Jumper link









8

J13

Atmel AVR – ATtiny UPDI - 6-way IDC

AVR
UPDI

IDC

0.1"

6

9

J11

Atmel AVR – ATtiny TPI - 6-way IDC

ATtiny
TPI

IDC

0.1"

6

10

J12

Atmel AVR – XMEGA PDI - 6-way IDC

XMEGA
PDI

IDC

0.1"

6

11

J10

Configuration - Jumper link









12

J14

Configuration - Jumper link









13

J3

Programmer to Target ISP Connector 16-Way

Equinox ISPnano

IDC Plug

0.1"

16

14

J2

Programmer to Target ISP Connector 10-Way

Equinox ISPnano

IDC Plug

0.1"

10

15

J7

Atmel AVR PDI / TPI - 5-way Molex cable connector

Custom

5-way

Molex

0.1"

5




Ordering Information...




Universal AVR - Target Interface Module (TIM)
The AVR-TIM-01-V1-1 is a Univeral AVR Target Interface Module (TIM) designed to support connection to all popular AVR microcontroller target connection systems. It features all the standard IDC header connectors for AVR ISP (SPI), AVR JTAG, AVR PDI (Xmega), AVR TPI (ATtiny), AVR UPDI plus the Equinox ISP standard connector. The TIM module is compatible with both the ISPjuno and ISPalfa1 portable ISP programmers.
Manufacturer:  Equinox Technologies
Order Code:  JUNO-AVR-TIM-01-V1-1
Quantity Price (GBP) [Excl. VAT]
1 and above 35.50

Availability:
0 in stock
10 days delivery
Product Information
Product:  Universal AVR - Target Interface Module (TIM)
Manufacturer:  Equinox Technologies
Order Code:  JUNO-AVR-TIM-01-V1-1
Availability:  0 in stock
10 days delivery
Price:   35.50 (GBP)
 [Excl. VAT]
